Intel TC430HX

Published: (last update )

Chipset
ModelIntel 430HX
Northbridge82439HX
SouthbridgePIIX3
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
RAM type (1)EDO 66 MHz, 64 bit
RAM type (2)-
RAM bandwidth528 MB/s
Maximum RAM128 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP-
PCI support2.1
Integrated VGA-
The board
Socketsocket 7
Supported CPUsPentium, Pentium MMX
Fastest CPUPentium MMX 233 MHz
RAM slots4 × EDO
AGP-
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 4, 3
IDE2 × ATA 0
SATA-
USB / Firewire2 × (1.1)
LAN-
FormatATX (305x244)
Release date1997

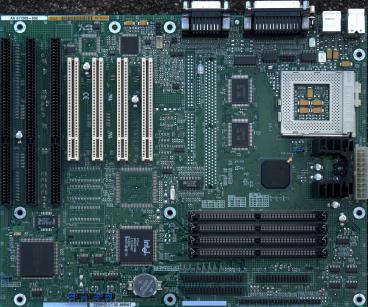

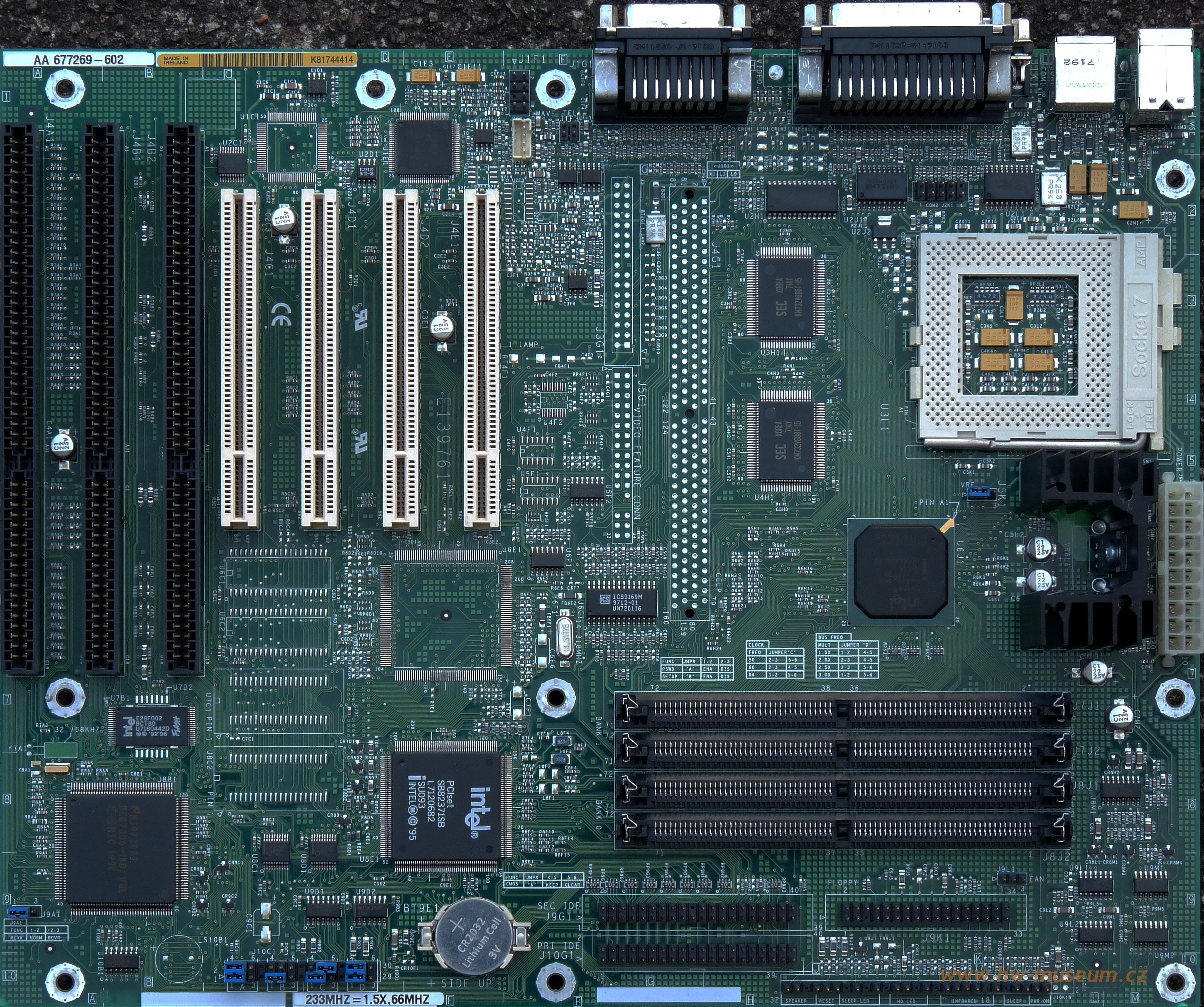

Intel TC430HX (front side)

Intel TC430HX (front side)

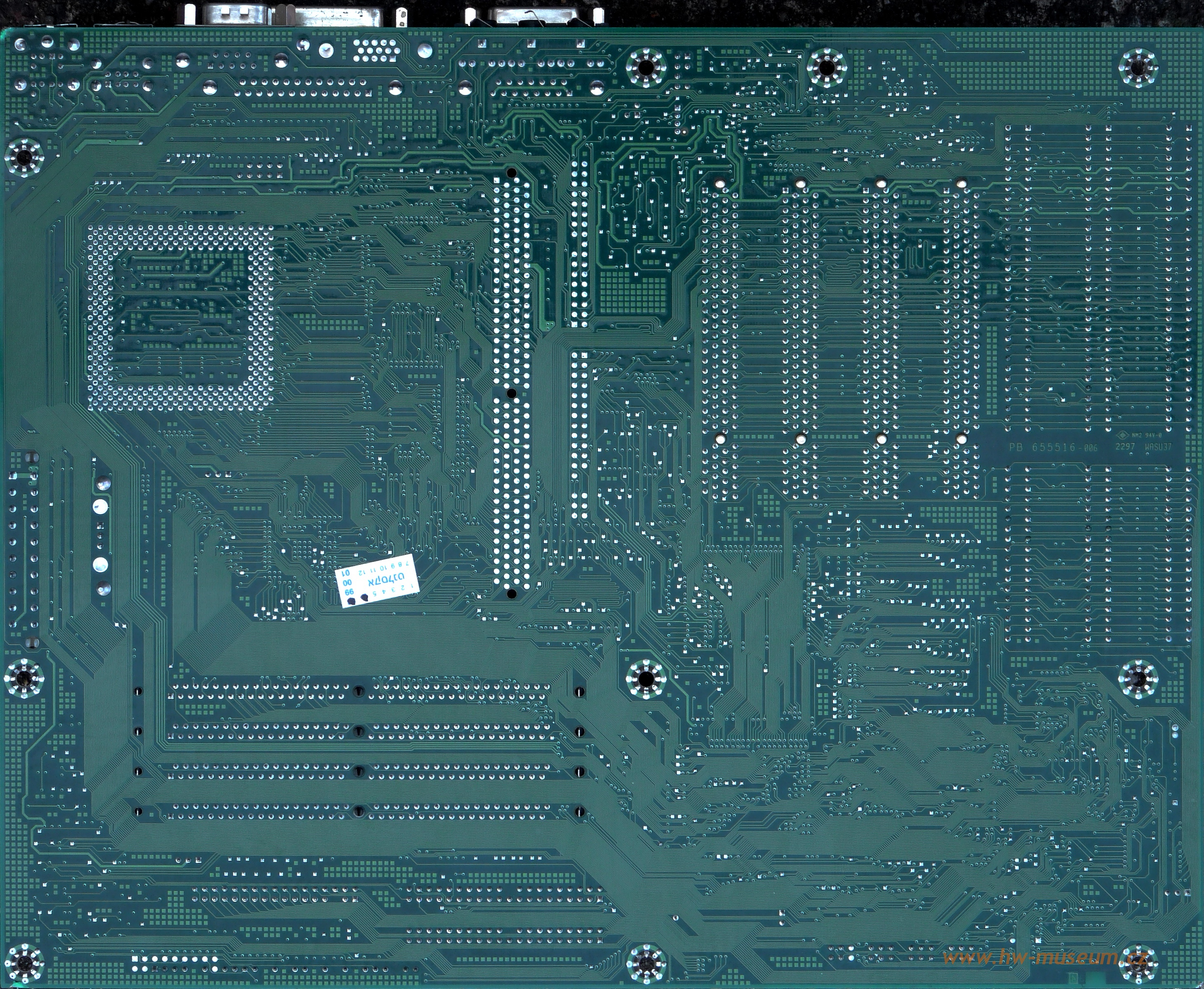

Intel TC430HX (back side)

Intel TC430HX (back side)
