Asus CUV4X

Published: (last update )

Chipset
ModelVIA Apollo Pro133A
NorthbridgeVT82C694X
SouthbridgeVT82C686A
Bus typeSDR, 133 MHz, 64 bit
Bus bandwith1064 MB/s
RAM type (1)SDR 133 MHz, 64 bit
RAM type (2)-
RAM bandwidth1064 MB/s
Maximum RAM1536 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP
PCI support2.1
Integrated VGA-
The board
Socketsocket 370
Supported CPUsPentium III, Celeron
Fastest CPUPentium III 1GHz
RAM slots3 × SDR
AGP1× - 4× ; 3.3V - 1.5V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, 1
IDE2 × ATA 66
SATA-
USB / Firewire4 × (1.1)
LAN-
FormatATX (305x209)
Release date2000
Asus CUV4X (front side)

Asus CUV4X (front side)

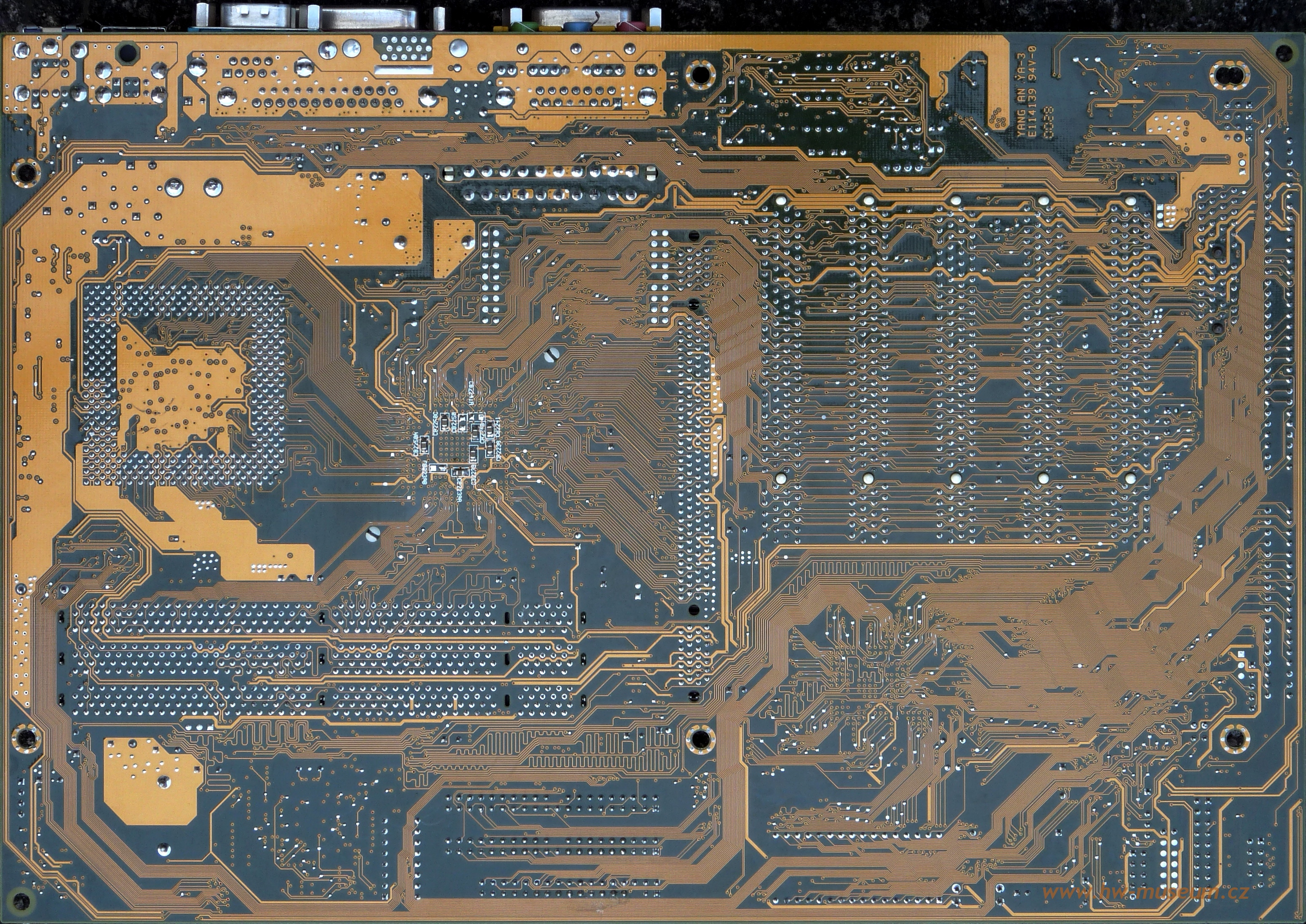

Asus CUV4X (back side)

Asus CUV4X (back side)
