Gigabyte GA-686NX

Published: (last update )

Chipset
ModelIntel 440FX
Northbridge82441FX, 82442FX
SouthbridgePIIX3
Bus typeSDR, 66 MHz, 64 bit
Bus bandwith528 MB/s
RAM type (1)EDO 66 MHz, 64 bit
RAM type (2)-
RAM bandwidth528 MB/s
Maximum RAM512 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP-
PCI support2.1
Integrated VGA-
The board
Socketsocket 8
Supported CPUsPentium Pro
Fastest CPUPentium Pro 200 MHz
RAM slots4 × EDO
AGP-
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 4, 4
IDE2 × ATA 0
SATA-
USB / Firewire-
LAN-
FormatATX (305x244)
Release date1996

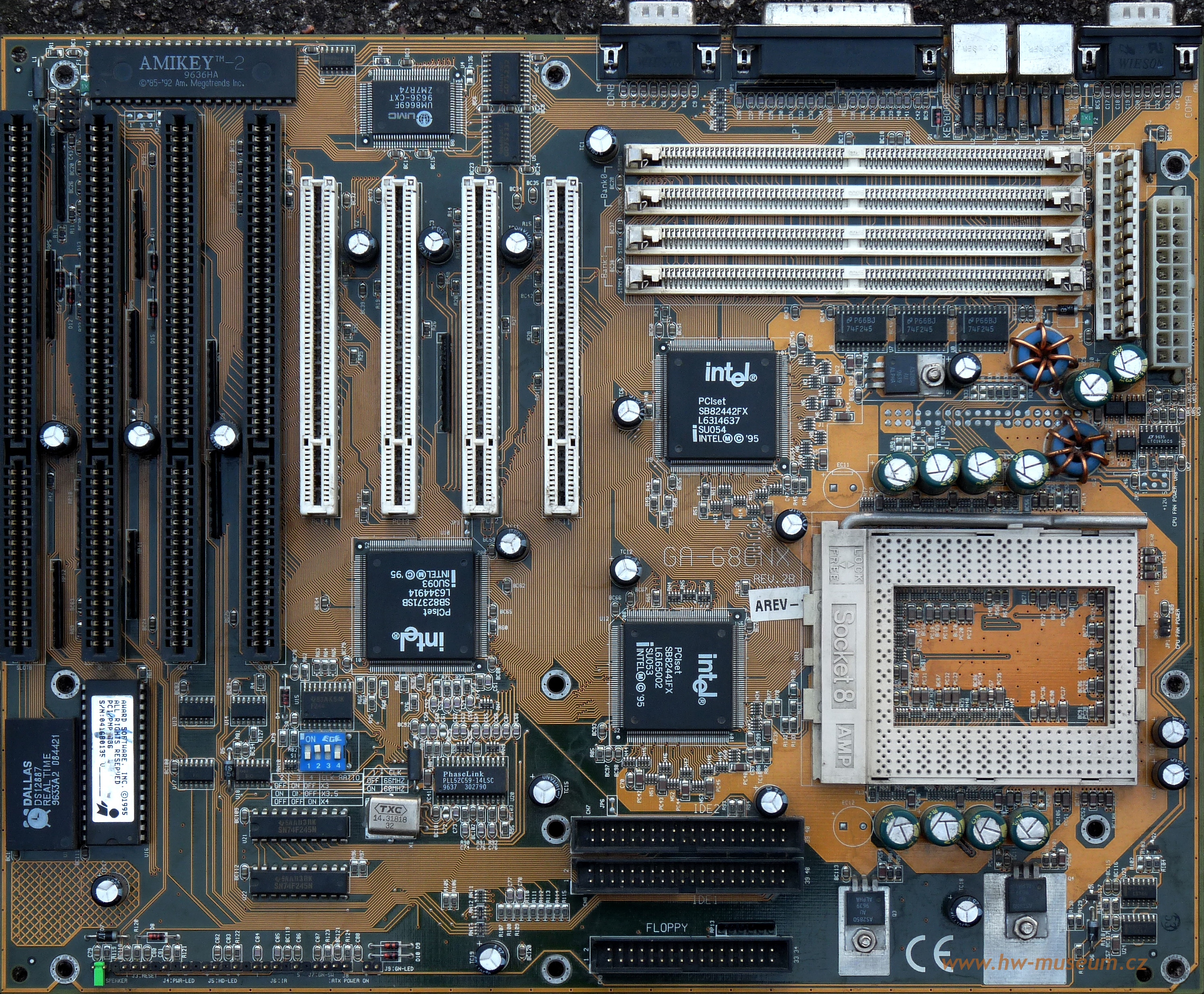

Gigabyte GA-686NX (front side)

Gigabyte GA-686NX (front side)

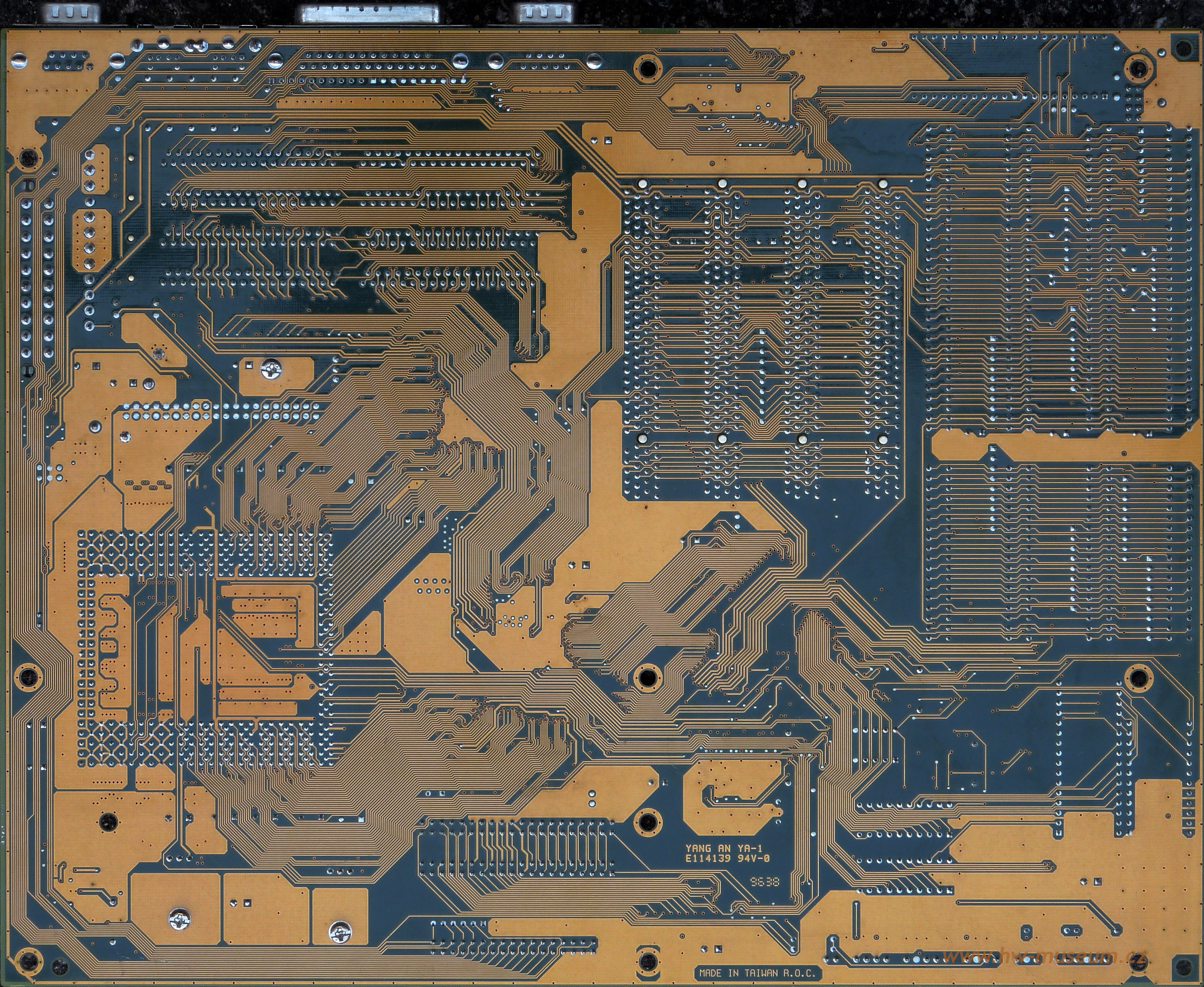

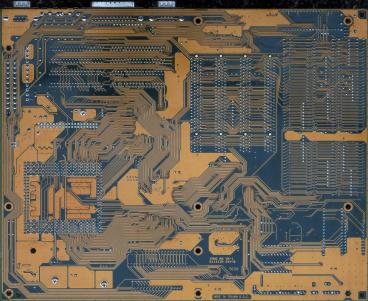

Gigabyte GA-686NX (back side)
