AOpen AX59PRO

Published: (last update )

Chipset
ModelVIA MVP3
NorthbridgeVT82C598MVP
SouthbridgeVT82C586B
Bus typeSDR, 100 MHz, 64 bit
Bus bandwith800 MB/s
RAM type (1)SDR 100 MHz, 64 bit
RAM type (2)EDO 66 MHz, 64 bit
RAM bandwidth800 MB/s ; 528 MB/s
Maximum RAM768 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP
PCI support2.1
Integrated VGA-
The board
Socketsocket 7
Supported CPUsPentium, K5, K6 - K6-III
Fastest CPUK6-III+ 550 Mhz
RAM slots3 × SDR, 2 × EDO
AGP1× - 2× ; 3.3V - 3.3V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 4, 2
IDE2 × ATA 33
SATA-
USB / Firewire2 × (1.1)
LAN-
FormatATX (305x202)
Release date1998

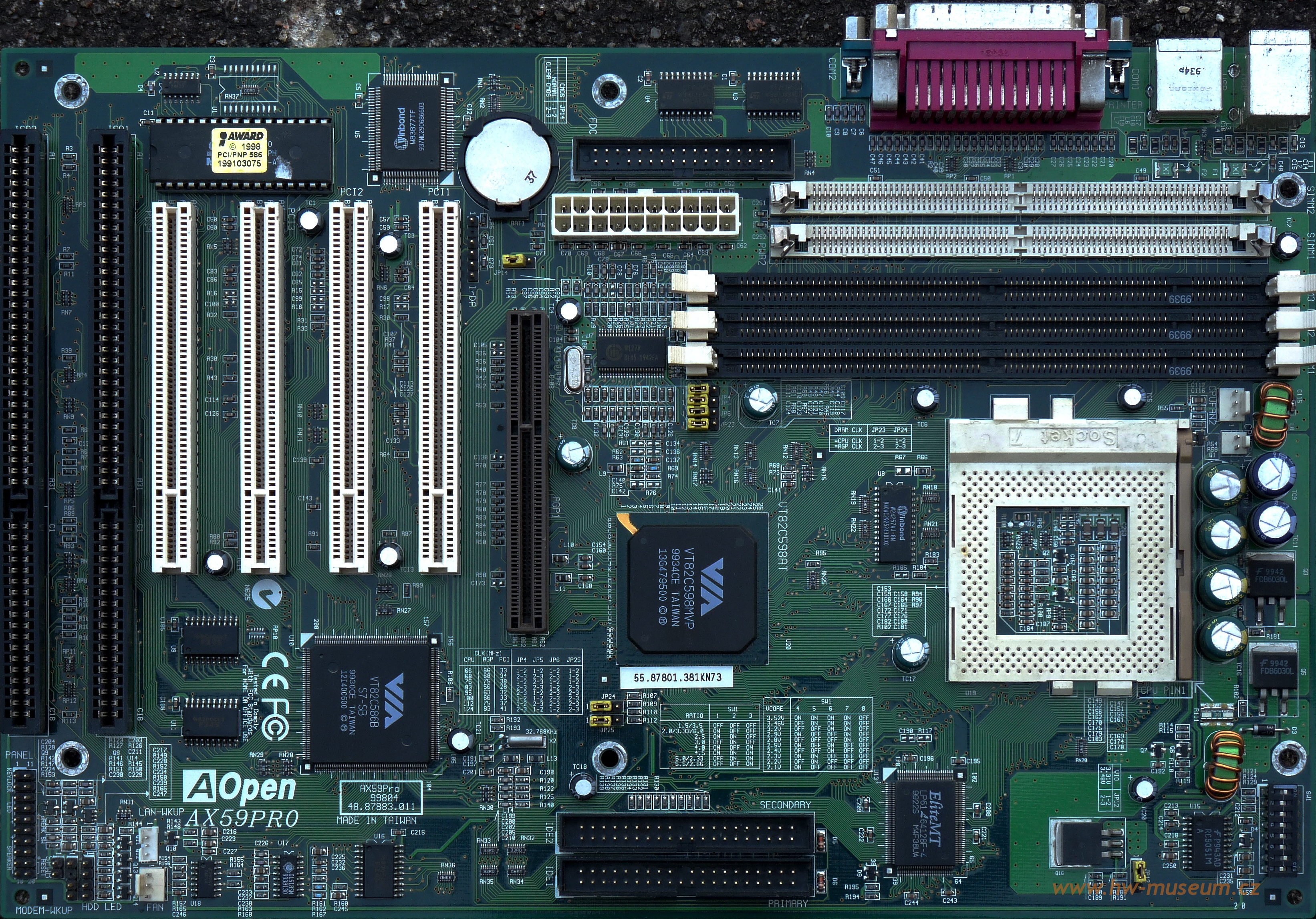

AOpen AX59PRO (front side)

AOpen AX59PRO (front side)

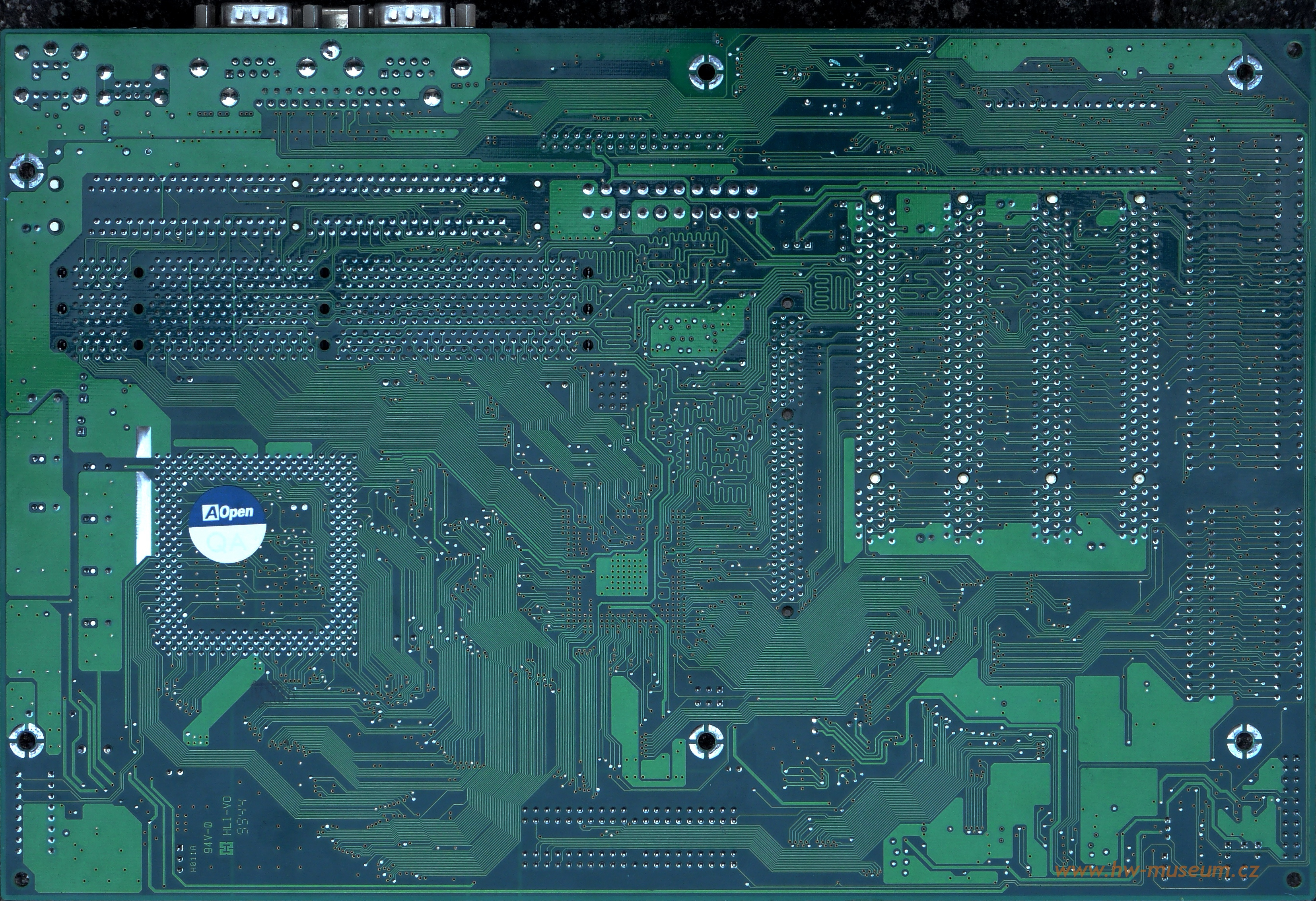

AOpen AX59PRO (back side)

AOpen AX59PRO (back side)
