Abit BE6

Published: (last update )

Chipset
ModelIntel 440BX
Northbridge82443BX
SouthbridgePIIX4E
Bus typeSDR, 100 MHz, 64 bit
Bus bandwith800 MB/s
RAM type (1)SDR 100 MHz, 64 bit
RAM type (2)-
RAM bandwidth800 MB/s
Maximum RAM768 MB
Reg. / ECC supportno / yes
NB PCI-E lanes -
AGP
PCI support2.1
Integrated VGA-
The board
Socketslot 1
Supported CPUsPentium II/III, Celeron
Fastest CPUCeleron 1.4 GHz
RAM slots3 × SDR
AGP1× - 2× ; 3.3V - 3.3V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 5, 2
IDE2 × ATA 33 + 2 × ATA 66
SATA-
USB / Firewire2 × (1.1)
LAN-
FormatATX (305x210)
Release date1999

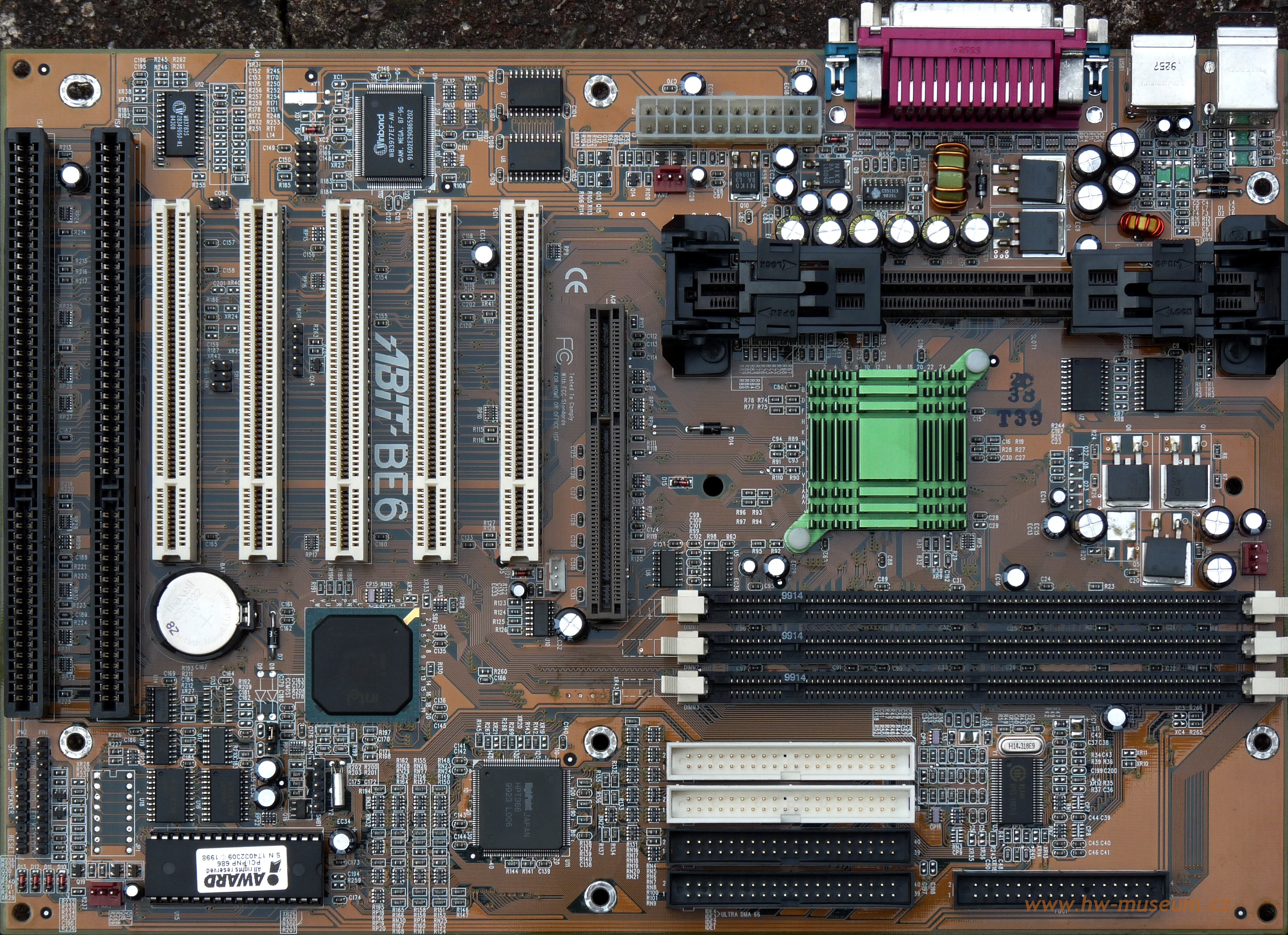

Abit BE6 (front side)

Abit BE6 (front side)

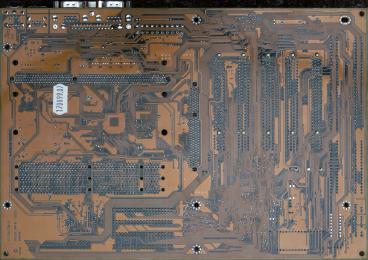

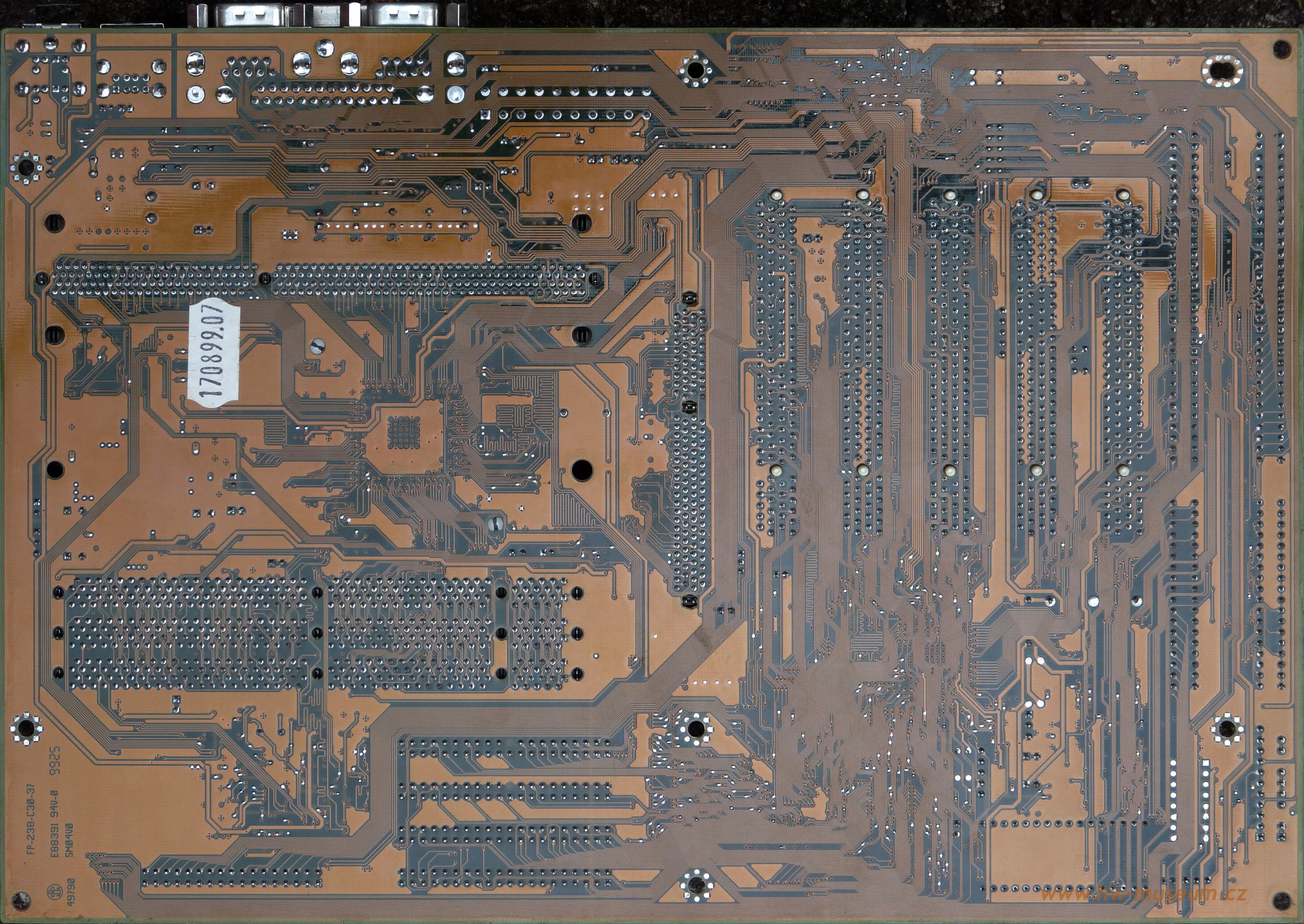

Abit BE6 (back side)

Abit BE6 (back side)
