Fujitsu-Siemens D1605

Published: (last update )

Chipset
ModelVIA K8T800
NorthbridgeK8T800
SouthbridgeVT8237
Bus typeHT, 1600 MHz, 32 bit
Bus bandwith6400 MB/s
RAM type (1)DDR 400 MHz, 64 bit
RAM type (2)-
RAM bandwidth3200 MB/s
Maximum RAM2048 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP
PCI support2.3
Integrated VGA-
The board
Socketsocket 754
Supported CPUsSempron, Athlon 64
Fastest CPUAthlon 64 3700+
RAM slots2 × DDR
AGP4× - 8× ; 1.5V - 0.8V
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 6, -
IDE2 × ATA 133
SATA2 × (150)
USB / Firewire6 × (2.0)
LAN1 × 10/100 Mb/s
FormatATX (305x244)
Release date2003

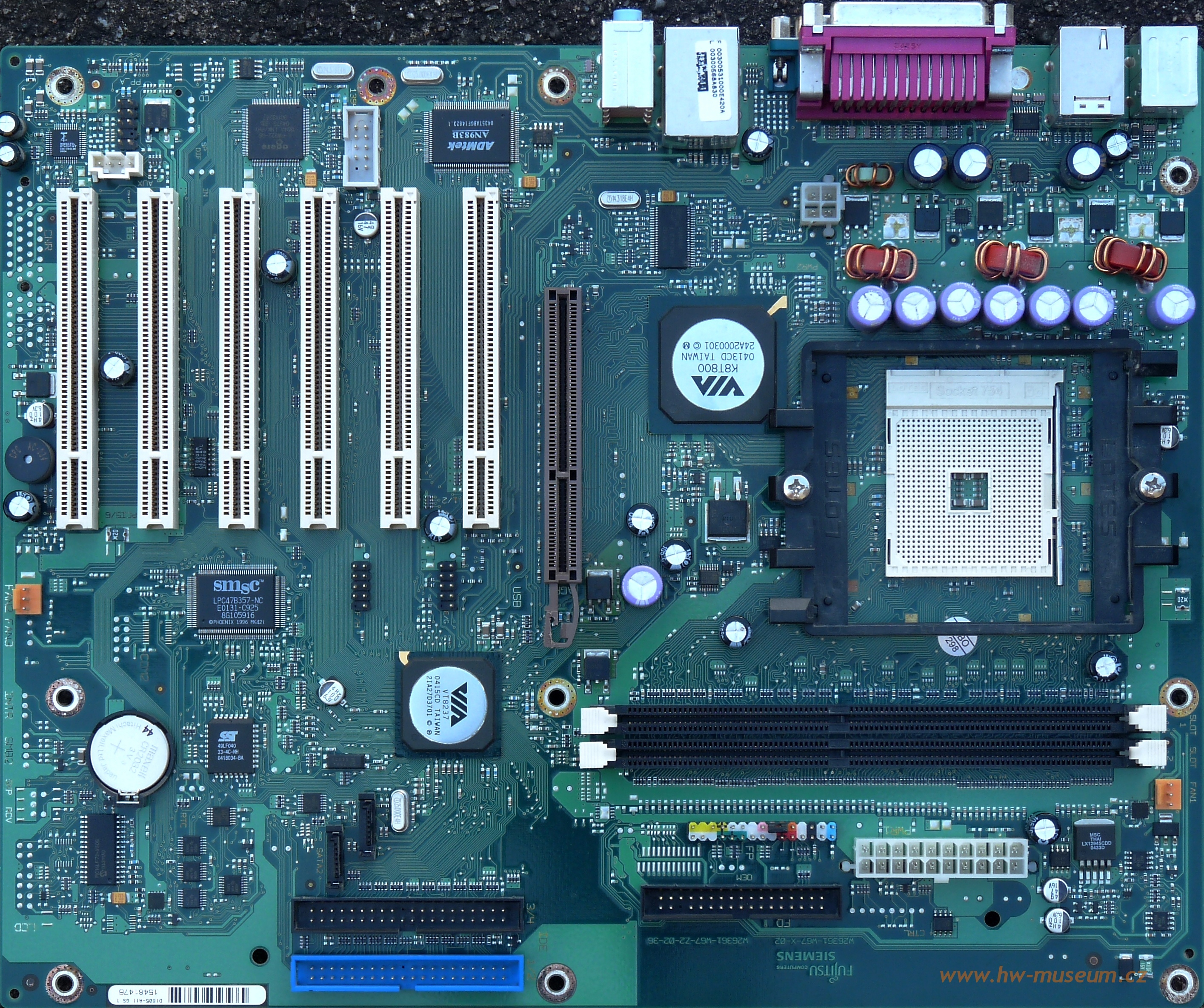

Fujitsu-Siemens D1605 (front side)

Fujitsu-Siemens D1605 (front side)

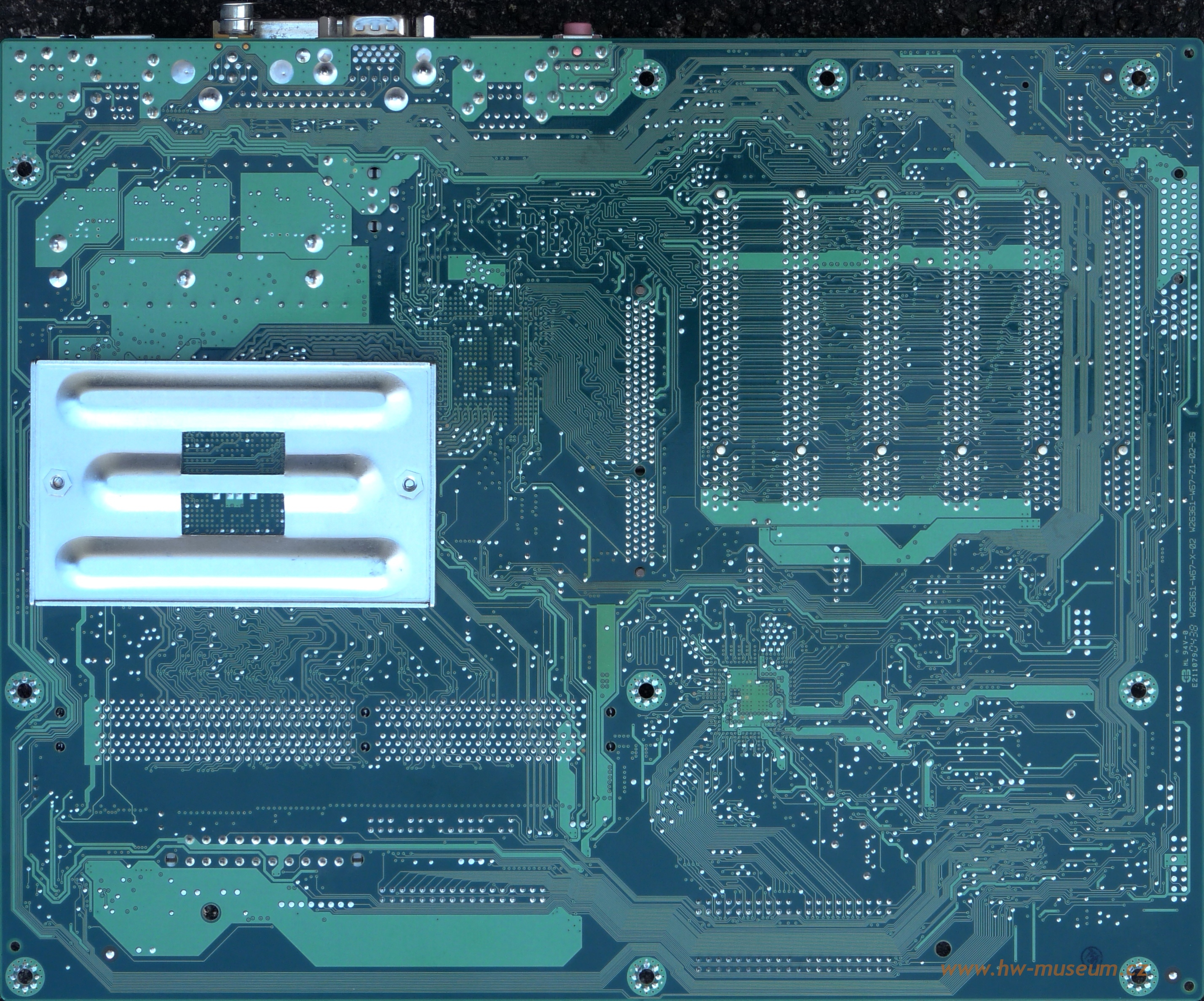

Fujitsu-Siemens D1605 (back side)

Fujitsu-Siemens D1605 (back side)
