Intel Advanced EV (Rev. 2)
Published: (last update )
| Chipset | |
|---|---|
| Model | Intel 430FX |
| Northbridge | 82437FX |
| Southbridge | PIIX |
| Bus type | SDR, 66 MHz, 64 bit |
| Bus bandwith | 528 MB/s |
| RAM type (1) | EDO 66 MHz, 64 bit |
| RAM type (2) | - |
| RAM bandwidth | 528 MB/s |
| Maximum RAM | 128 MB |
| Reg. / ECC support | no / no |
| NB PCI-E lanes | - |
| AGP | - |
| PCI support | 2 |
| Integrated VGA | - |
| The board | |
|---|---|
| Socket | socket 7 |
| Supported CPUs | Pentium, AMD K5, Cyrix 6X86 |
| Fastest CPU | Pentium 200 |
| RAM slots | 4 × EDO |
| AGP | - |
| PCI-E x16, x8, x4, x1 | , -, -, -, - |
| PCI-X / PCI / ISA | -, 4, 3 |
| IDE | 2 × ATA 0 |
| SATA | - |
| USB / Firewire | - |
| LAN | - |
| Format | Baby AT (218x330) |
| Release date | 1996 |

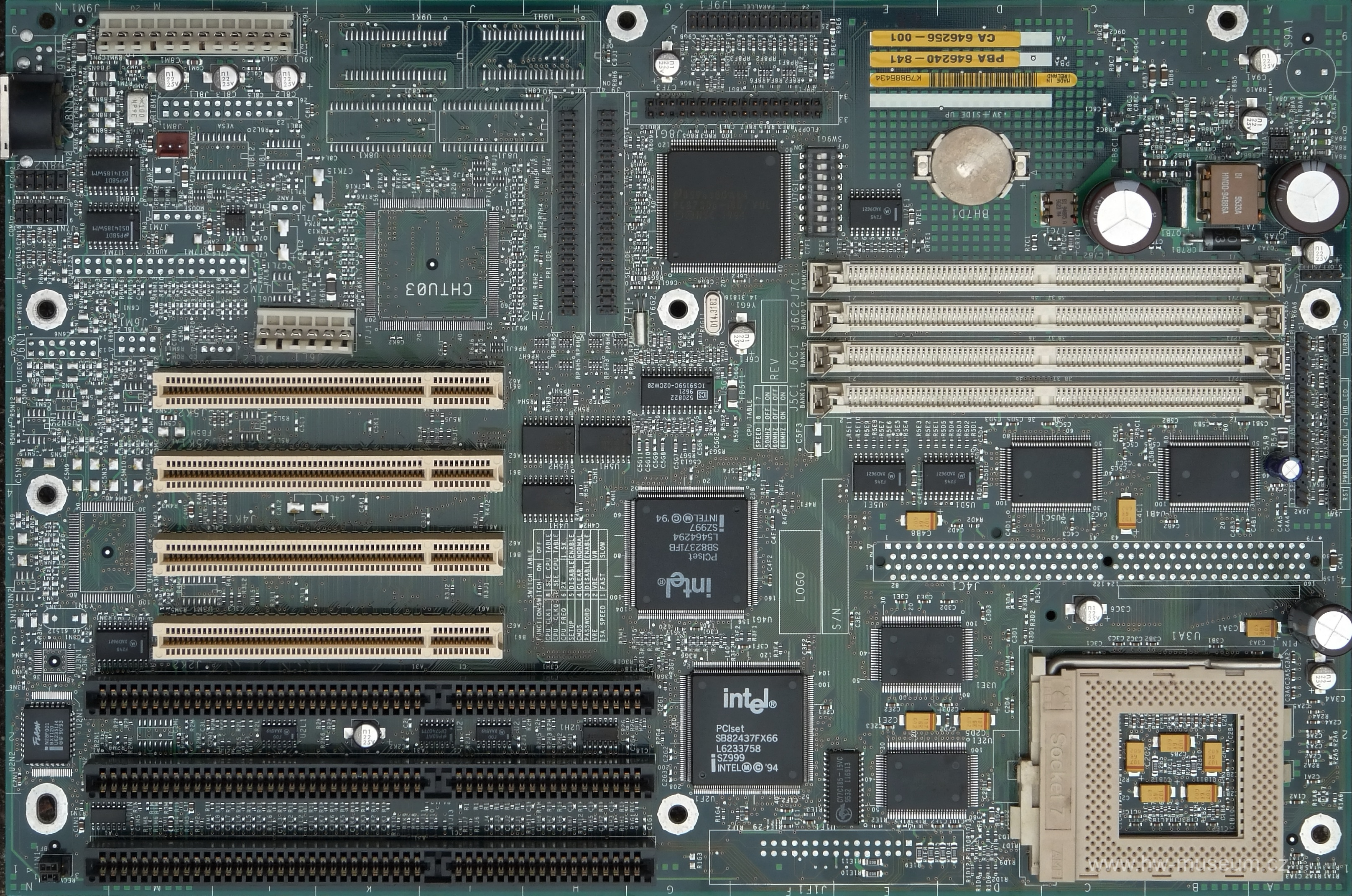

_F.jpg "Click to enlarge")

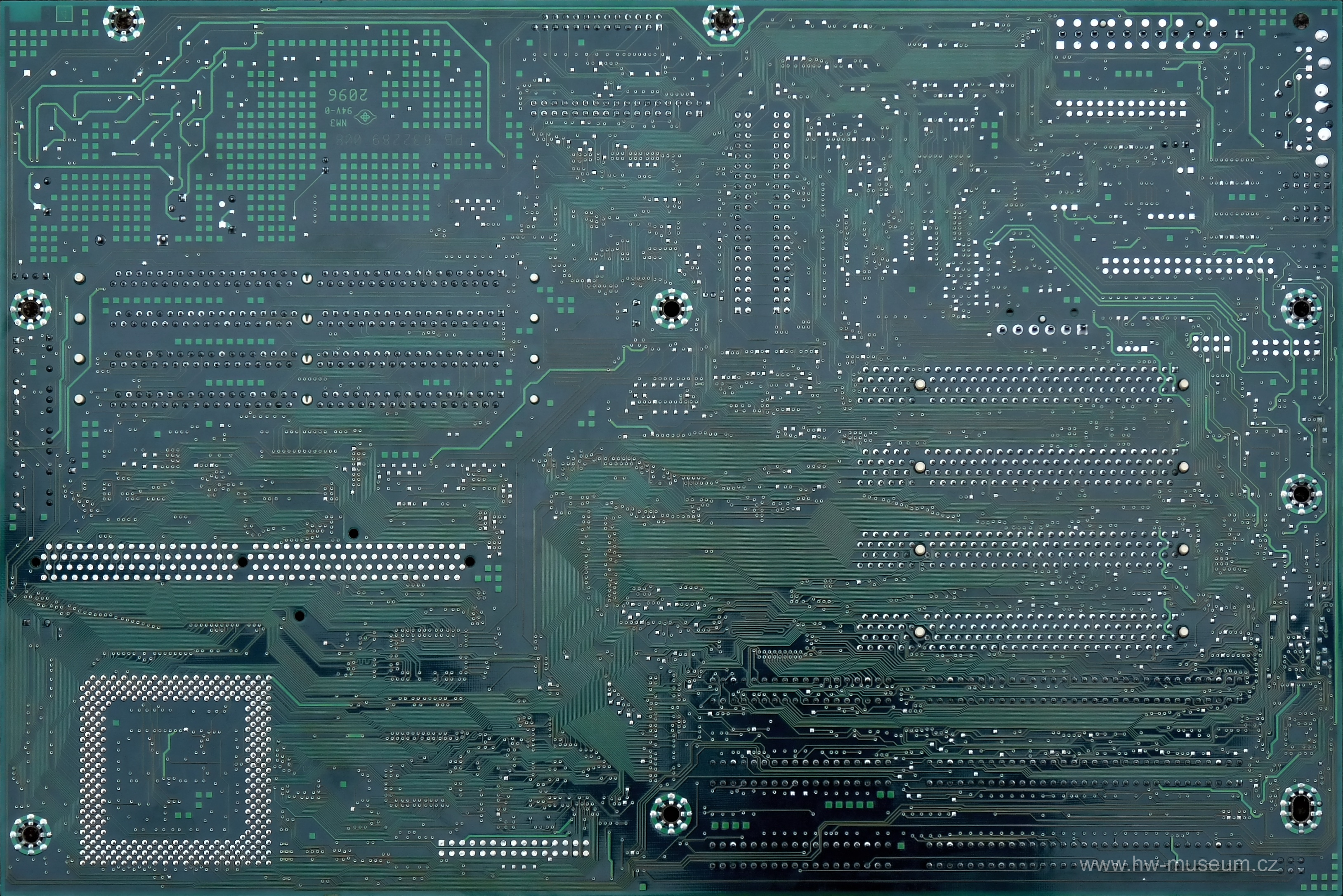

_B.jpg "Click to enlarge")
