Asus TX97-XE

Published: (last update )

Chipset
ModelIntel 430TX
Northbridge82439TX
SouthbridgePIIX4
Bus typeSDR, 75 MHz, 64 bit
Bus bandwith600 MB/s
RAM type (1)SDR 75 MHz, 64 bit
RAM type (2)EDO 75 MHz, 64 bit
RAM bandwidth600 MB/s ; 600 MB/s
Maximum RAM256 MB
Reg. / ECC supportno / no
NB PCI-E lanes -
AGP-
PCI support2.1
Integrated VGA-
The board
Socketsocket 7
Supported CPUsPentium (MMX), AMD K6, Cyrix MII
Fastest CPUK6-III+ 450
RAM slots2 × SDR, 4 × EDO
AGP-
PCI-E x16, x8, x4, x1, -, -, -, -
PCI-X / PCI / ISA-, 4, 4
IDE2 × ATA 0
SATA-
USB / Firewire2 × (1.1)
LAN-
FormatATX (305x213)
Release date1997

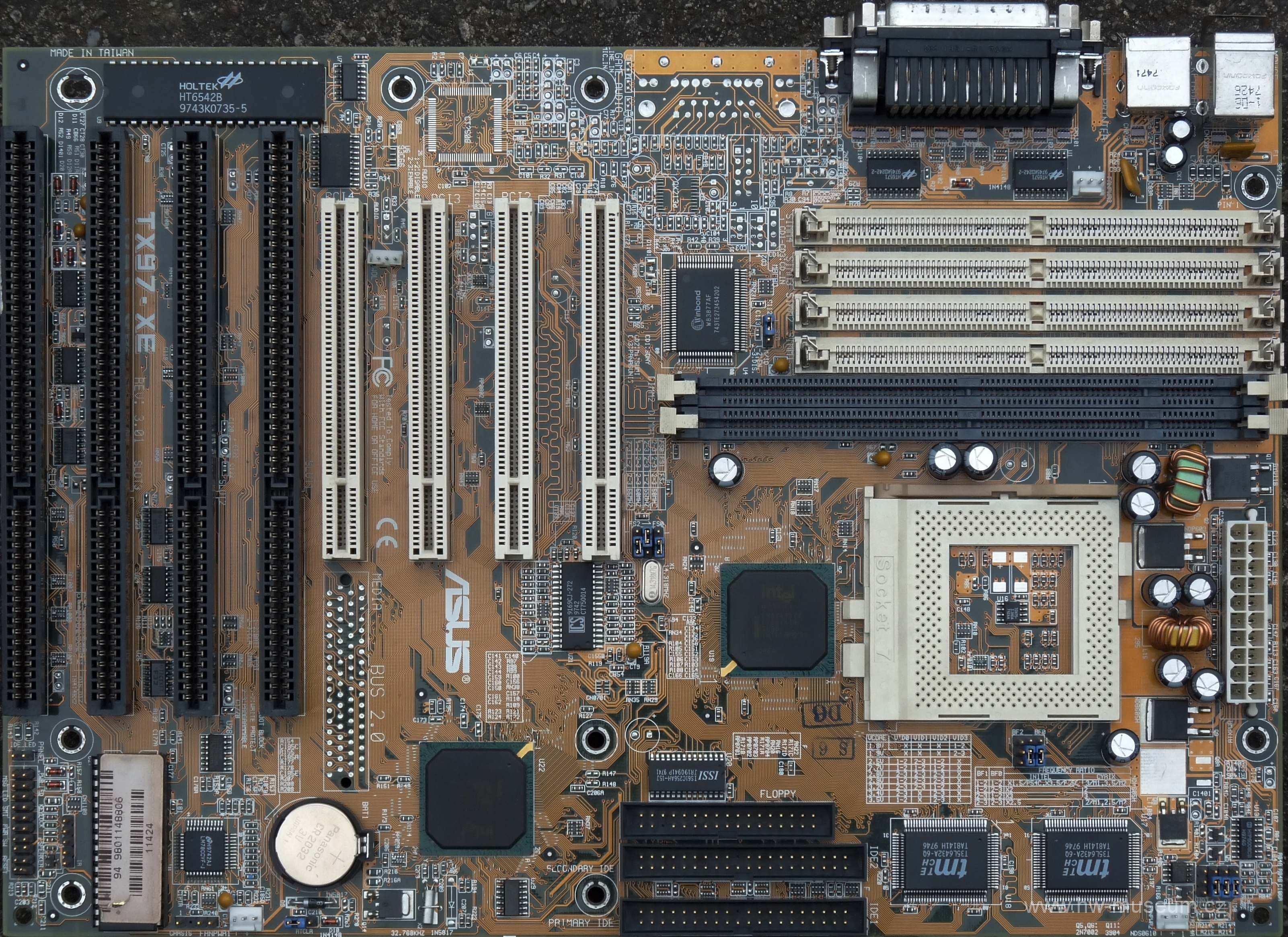

Asus TX97-XE (front side)

Asus TX97-XE (front side)

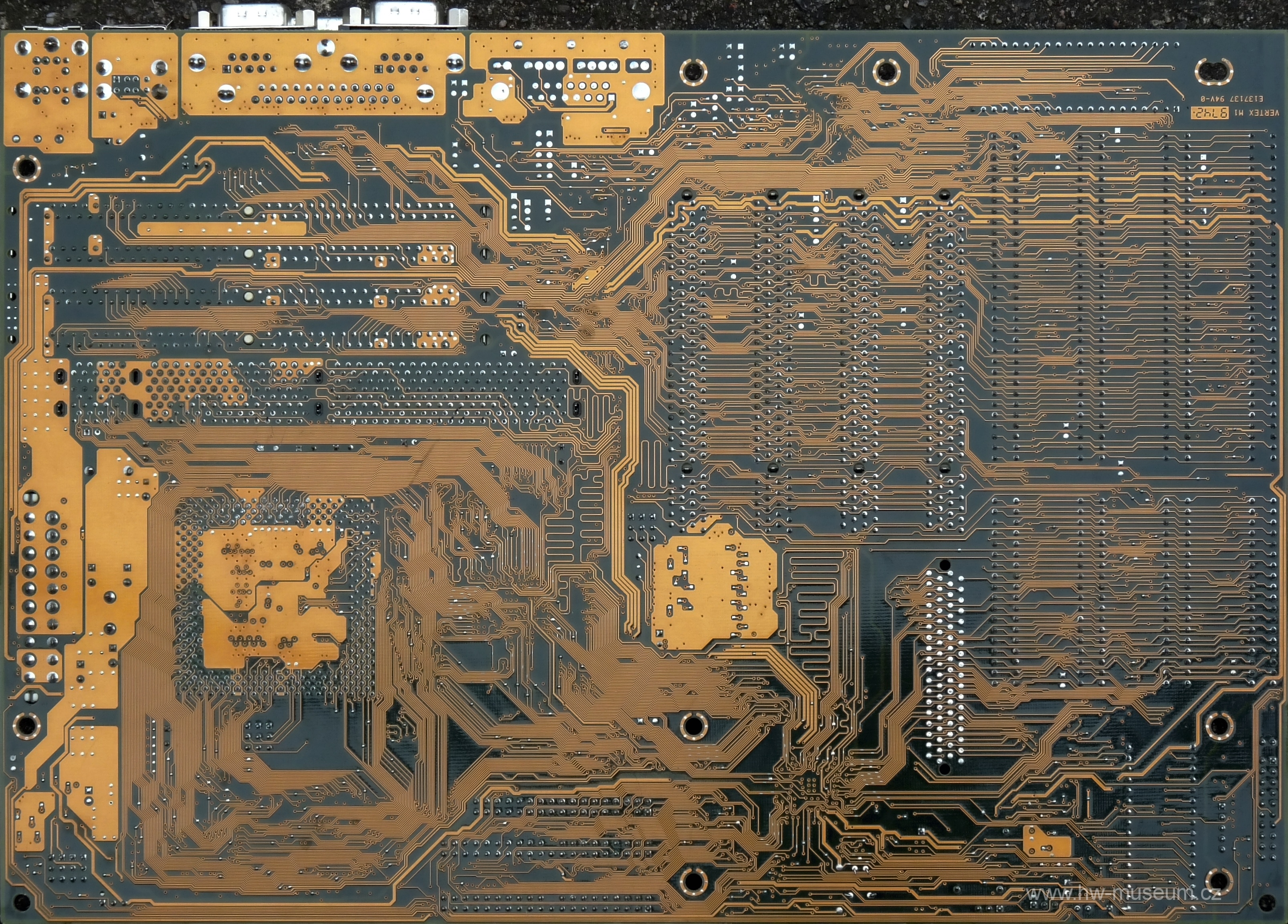

Asus TX97-XE (back side)

Asus TX97-XE (back side)
