Intel Xeon E5-2689

Published: (last update )

Core
Code nameSandy Bridge-EP (8C)
Base clock2600 MHz
Turbo full / half / single3300 | 3300 | 3600 MHz
Base multiplier26×
Technology32 nm
Transistors2270 million
Die size435 mm2
Density5.22 M / mm2
Cores / threads8 / 16
SteppingC2
Cache
L1 data cache8 × 32 kB
L1 inst. cache8 × 32 kB
L2 cache8 × 256 kB
L2 cache typeOn-die, full speed
L3 cache20480 kB
L3 cache typeOn-die, full speed
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.SSE2, (S)SSE3
Extended inst. 2EM64T, SSE(4.1, 4.2)
Extended inst. 3VT-x, AES-NI, AVX
Extended inst. 4
Extended inst. 5
The CPU
Bus typeDMI 2.0, 100 MHz
Bus bandwith-
SocketSocket 2011
Package2011 Contact FC-LGA
Package size45 x 52.5 mm
Manufacture date16th week of 2012
Voltage1.1 V
TDP115 W
Memory controllerDDR3 1600, 256 bit
Integrated VGA-
Release date2012
Intel Xeon E5-2689 (front side)

Intel Xeon E5-2689 (front side)

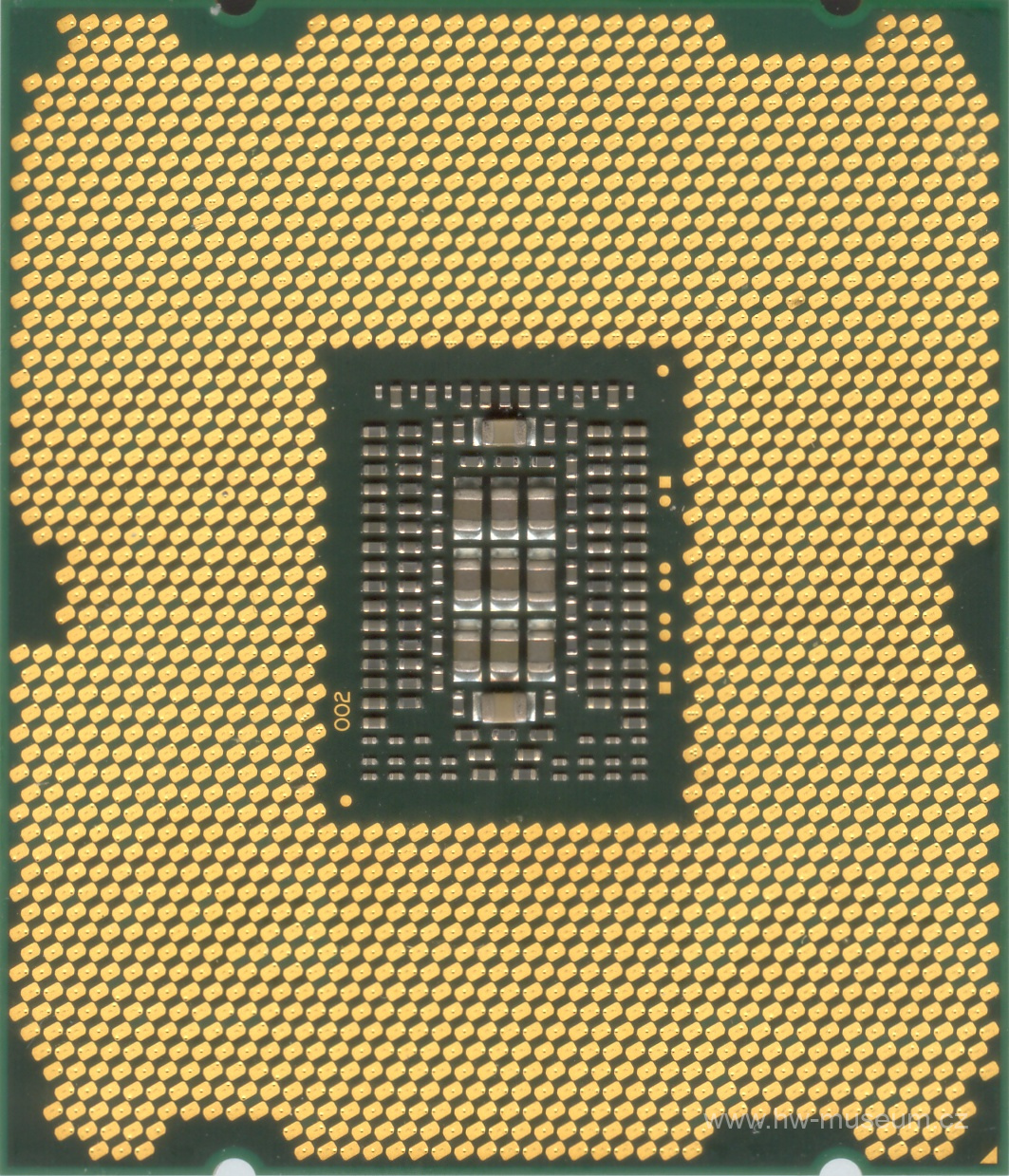

Intel Xeon E5-2689 (back side)

Intel Xeon E5-2689 (back side)
