Intel Core i7-5775C

Published: (last update )

Note: The MCM package contains CPU + IGP die (182 mm², 14 nm) and 128 MB EDRAM die (77 mm², 22 nm)

Core
Code nameBroadwell (4C + GT3e)
Base clock3300 MHz
Turbo full / half / single3600 | 3700 | 3700 MHz
Base multiplier33×
Technology14 nm
Transistors-
Die size259 mm2
Cores / threads4 / 8
SteppingG0
Cache
L1 data cache4 × 32 kB
L1 inst. cache4 × 32 kB
L2 cache4 × 256 kB
L2 cache typeOn-die, full speed
L3 cache6144 kB
L3 cache typeOn-die, unknown speed
Instructions
Basic inst.x86, x87, MMX, SSE
Extended inst.SSE2, (S)SSE3
Extended inst. 2EM64T, SSE(4.1, 4.2)
Extended inst. 3VT-x, AES-NI, AVX
Extended inst. 4AVX2, FMA3
The CPU
Bus typeDMI 2.0, 100 MHz
Bus bandwith-
SocketSocket 1150
Package1150 Contact FC-LGA
Package size37.5 x 37.5 mm
Manufacture date20th week of 2015
Voltage-
TDP65 W
Memory controllerDDR3 1600, 128 bit
Integrated VGAIris Pro Graphics 6200 (Gen 8)
Release date2015

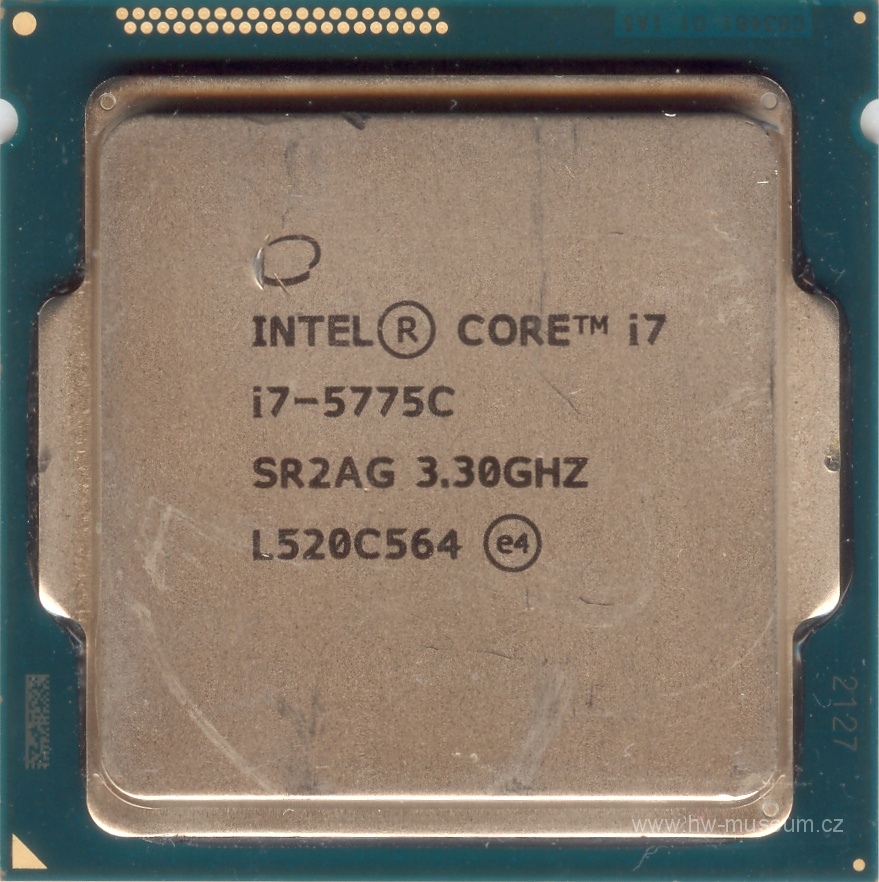

Intel Core i7-5775C (front side)

Intel Core i7-5775C (front side)

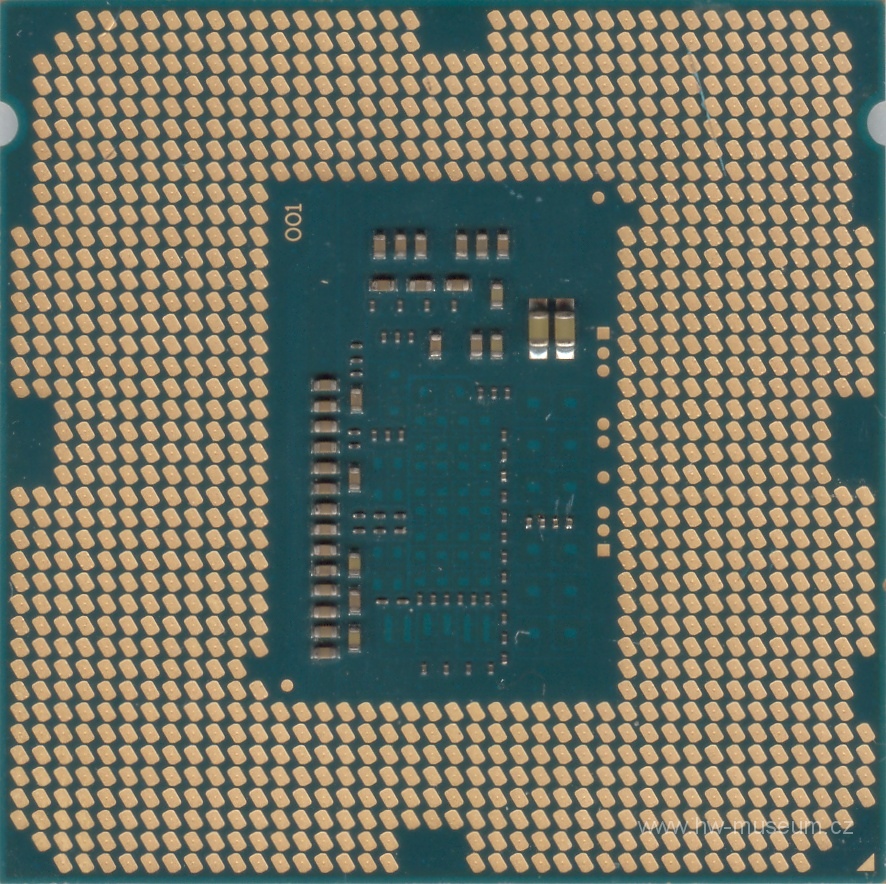

Intel Core i7-5775C (back side)

Intel Core i7-5775C (back side)
