Intel Mobile Celeron Module 300 MHz
Published: (last update )

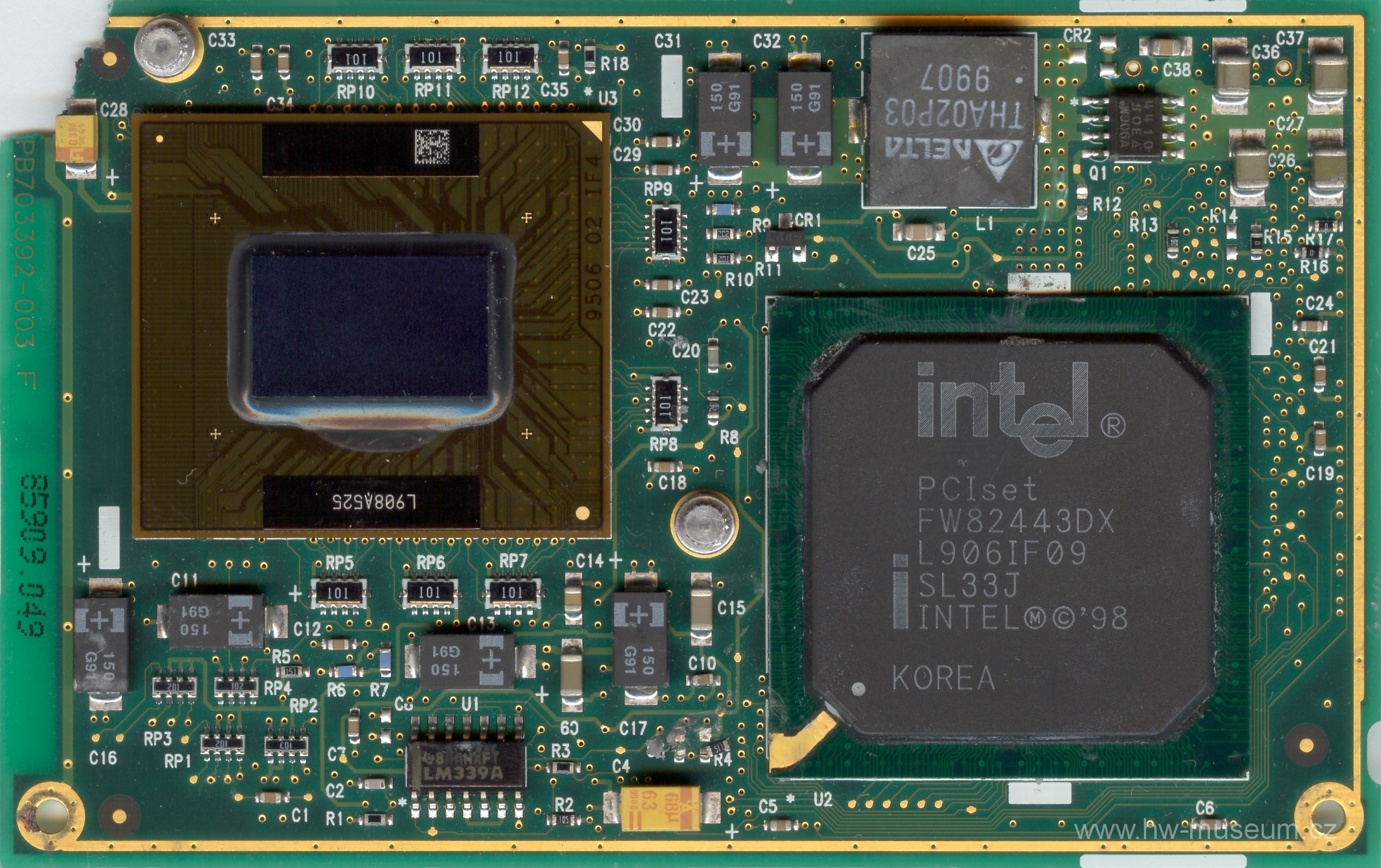

Note: Using Dixon core with only 128 kB of L2 active. The MMC-1 module contains CPU and i440DX north bridge. Not tested, possibly defective.
| Core | |
|---|---|
| Code name | Dixon (250 nm) |
| Base clock | 300 MHz |
| Turbo full / half / single | - |
| Base multiplier | 4.5× |
| Technology | 250 nm |
| Transistors | 27.4 million |
| Die size | 180 mm2 |
| Density | 0.15 M / mm2 |
| Cores / threads | 1 / 1 |
| Stepping | - |
| Cache | |
| L1 data cache | 16 kB |
| L1 inst. cache | 16 kB |
| L2 cache | 128 kB |
| L2 cache type | On-die, full speed |
| L3 cache | - |
| L3 cache type | - |
| Instructions | |
|---|---|
| Basic inst. | x86, x87, MMX |
| Extended inst. | |
| Extended inst. 2 | |
| Extended inst. 3 | |
| Extended inst. 4 | |
| Extended inst. 5 | |
| The CPU | |
| Bus type | SDR, 66 MHz, 64 bit |
| Bus bandwith | 528 MB/s |
| Socket | Socket MMC-1 |
| Package | 280-pin Mobile Module Connector |
| Package size | 102 x 64 mm |
| Manufacture date | 8th week of 1999 |
| Voltage | 1.6 V |
| TDP | 10.8 W |
| Memory controller | - |
| Integrated VGA | - |
| Release date | 1999 |
