AMD Athlon 1400

Published: (last update )

Core
Code nameThunderbird
Base clock1400 MHz
Turbo full / half / single-
Base multiplier10.5×
Technology180 nm
Transistors37 milion
Die size120 mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache64 kB
L1 inst. cache64 kB
L2 cache256 kB
L2 cache typeOn-die, full speed
L3 cache-
L3 cache type-
Instructions
Basic inst.x86, x87, MMX(+)
Extended inst.3DNow!
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeDDR, 266 MHz, 64 bit
Bus bandwith2128 MB/s
SocketSocket 462
Package453 pin CPGA
Package size50 x 50 mm
Manufacture date2801
Voltage1.75 V
TDP72 W
Memory controller-
Integrated VGA-
Release date2001

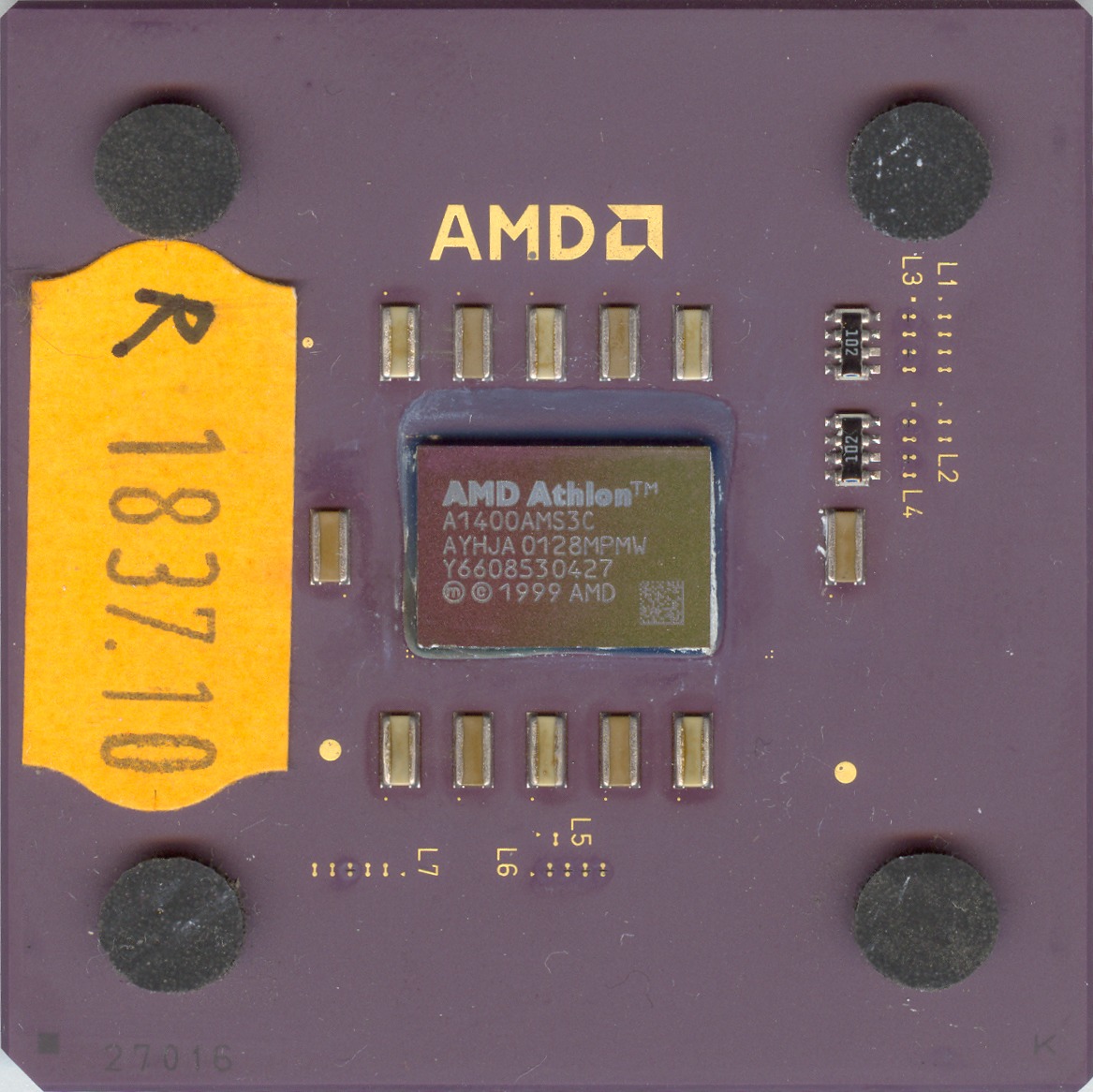

AMD Athlon 1400 (front side)

AMD Athlon 1400 (front side)

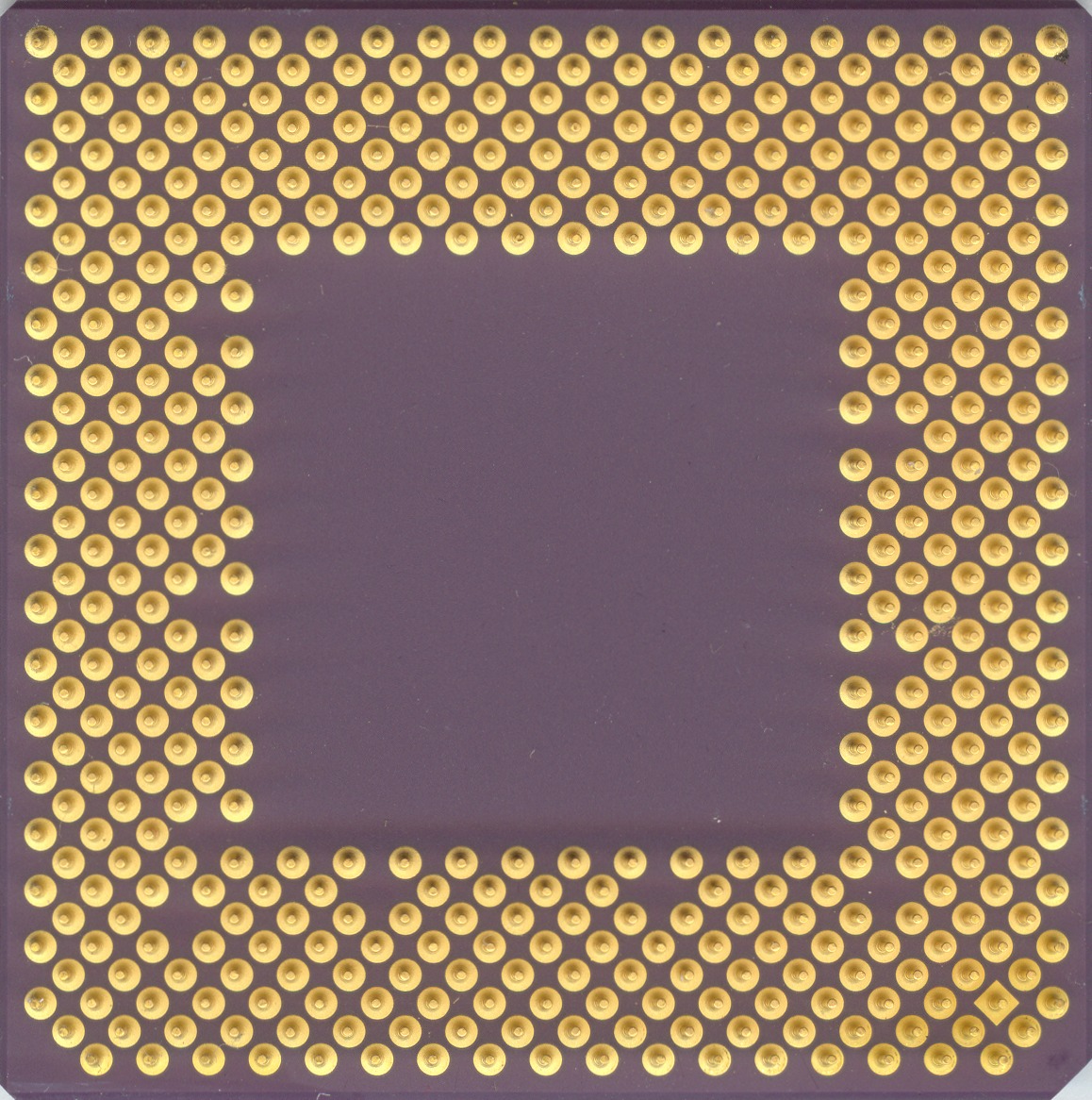

AMD Athlon 1400 (back side)

AMD Athlon 1400 (back side)
