AMD Am286-10

Published: (last update )

Core
Code nameAm286
Base clock10 MHz
Turbo full / half / single-
Base multiplier
Technology1500 nm
Transistors0.134 milion
Die size47 mm2
Cores / threads1 / 1
Stepping-
Cache
L1 data cache-
L1 inst. cache-
L2 cache-
L2 cache type-
L3 cache-
L3 cache type-
Instructions
Basic inst.x86
Extended inst.
Extended inst. 2
Extended inst. 3
Extended inst. 4
The CPU
Bus typeSDR, 10 MHz, 16 bit
Bus bandwith20 MB/s
SocketSocket unknown
Package68 pin Ceramic LCC
Package size25 x 25 mm
Manufacture date0588
Voltage5 V
TDP3 W
Memory controller-
Integrated VGA-
Release date1982

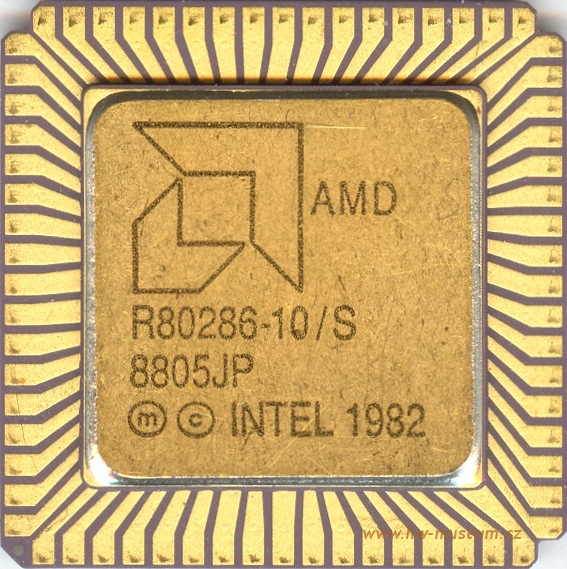

AMD Am286-10 (front side)

AMD Am286-10 (front side)

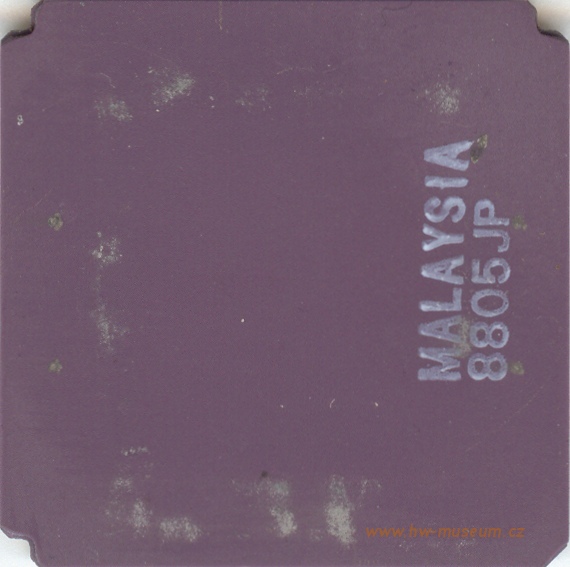

AMD Am286-10 (back side)

AMD Am286-10 (back side)
