The Ultimate GPU Benchmark (2009 - 2013)

Published: (last update )


The third part is ready. With new test platform and many interesting games. The range of video cards is quite wide this time, starting with Radeon HD 5000 / Geforce GTX 400 series and up to Radeon R9 290X and GeForce GTX 780 Ti.

Project CARS

Running Maximum details.

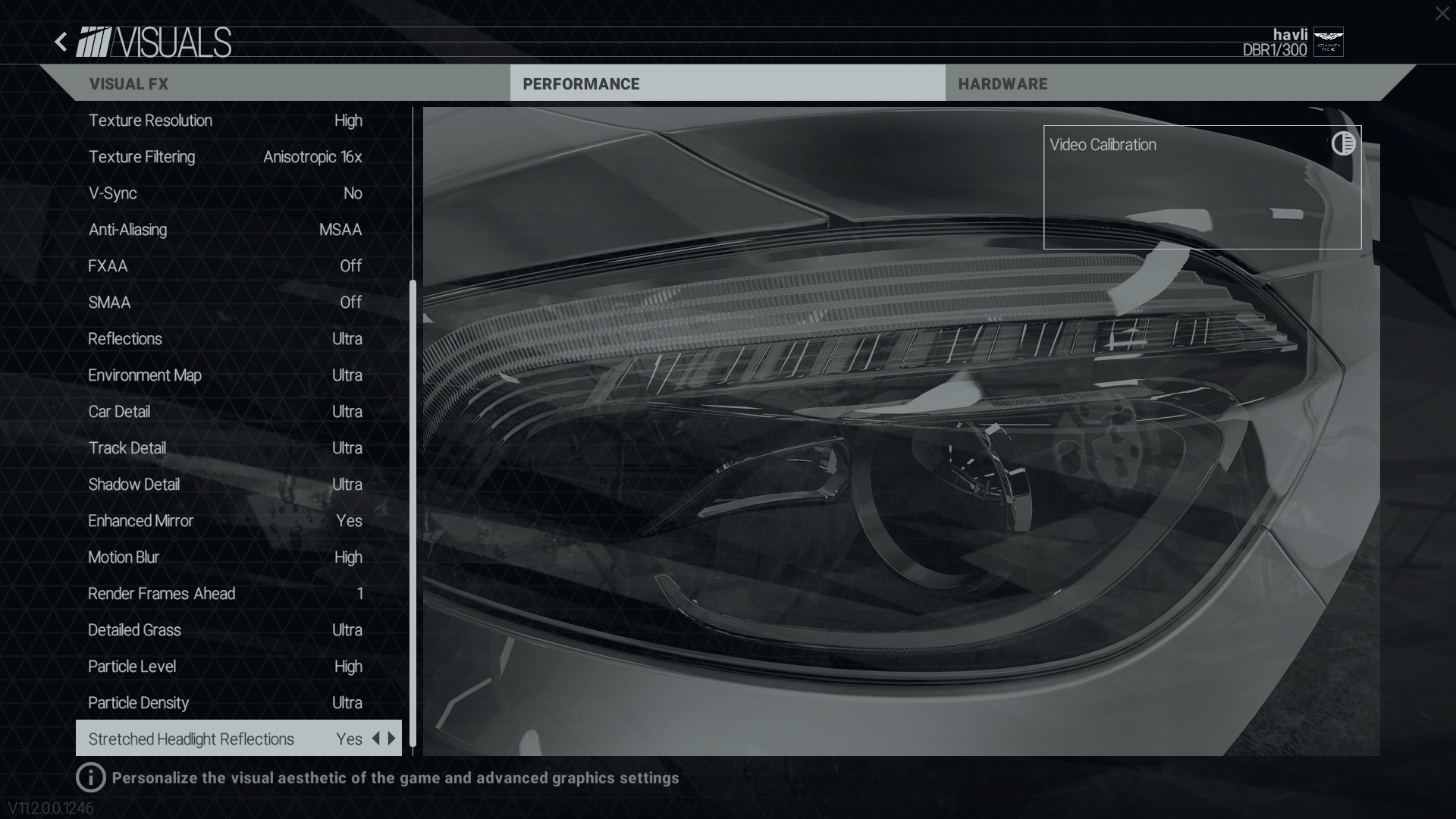

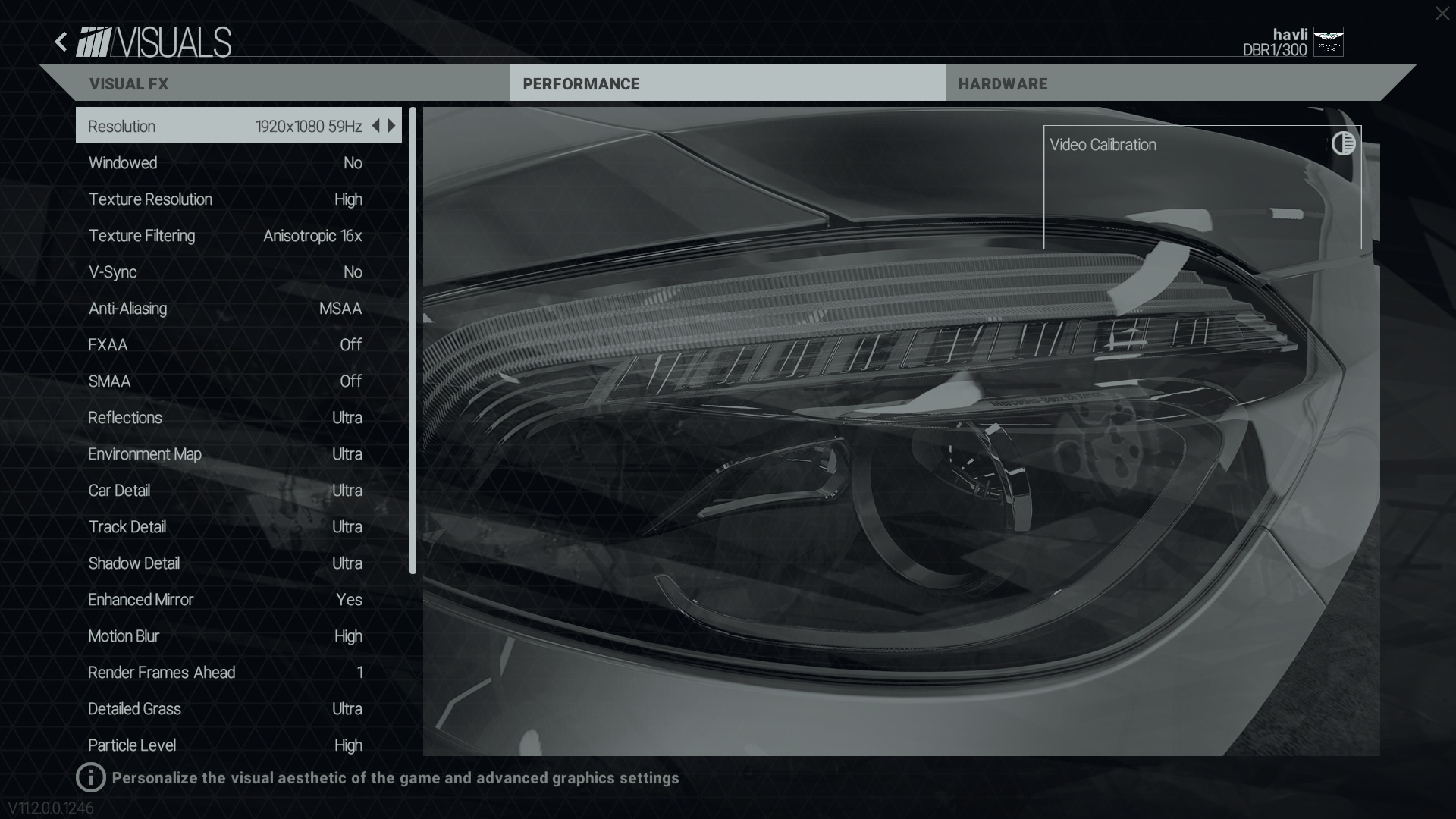

Project CARS Settings Project CARS Settings

Project CARS – 1280×720 noAA, 16×AF [fps]


◄ 1% low fps | average fps ►
GeForce GTX 690
88.0
152.3
GeForce GTX 780 Ti OC
90.5
142.9
2 × Radeon R9 280X
106.7
133.4
2 × GeForce GTX 580 OC
90.9
127.7
GeForce GTX 780 OC
88.1
122.2
Radeon R9 290X OC
98.3
119.3
GeForce GTX 780 @ 155W
77.0
109.5
GeForce GTX 770 OC
72.2
109.0
2 × GeForce GTX 560 Ti OC
76.6
106.5
Radeon R9 290
83.3
103.4
2 × GeForce GTX 480
72.2
103.2
Radeon R9 380X
70.3
91.9
Radeon HD 6990
73.4
91.3
3 × Radeon HD 5870
66.7
89.1
Radeon R9 280X
71.6
87.4
GeForce GTX 670
60.5
85.0
GeForce GTX 760 OC
58.4
82.4
Radeon HD 5970
56.1
79.1
Radeon HD 7970
61.5
75.9
Radeon R9 270X OC
58.4
74.0
GeForce GTX 580 OC
57.2
73.8
Radeon HD 7950 Boost
55.1
69.3
GeForce GTX 660 OEM
46.2
67.2
GeForce GTX 570 OC
49.2
63.8
GeForce GTX 560 Ti OC
41.2
57.2
Radeon HD 7850 (1 GB)
42.5
56.3
GeForce GTX 480
40.6
55.8
Radeon HD 6970 OC (1 GB)
45.3
54.3
Radeon HD 6970 OC (2 GB)
43.2
52.4
GeForce GTX 460 OC
34.7
49.6
Radeon HD 5850 OC
40.6
49.3
Radeon HD 5870
40.0
47.6
GeForce GTX 470
34.0
46.0
Radeon HD 6870
35.5
44.3
Radeon HD 5850
33.4
40.2
GeForce GTX 460 OEM
25.5
35.4
Radeon HD 5770
23.2
29.3
GeForce GTS 450
18.3
25.7
Quadro 4000
0.0
Hardware Museumwww.hw-museum.cz



Project CARS – 1280×720 MSAA, 16×AF [fps]


◄ 1% low fps | average fps ►
GeForce GTX 690
90.2
132.0
GeForce GTX 780 Ti OC
89.7
124.9
2 × Radeon R9 280X
91.9
121.3
GeForce GTX 780 OC
71.9
105.3
2 × GeForce GTX 580 OC
70.9
96.6
GeForce GTX 780 @ 155W
63.8
93.5
GeForce GTX 770 OC
64.5
92.7
Radeon R9 290X OC
70.6
89.4
2 × GeForce GTX 560 Ti OC
57.0
84.6
3 × Radeon HD 5870
53.8
81.5
Radeon R9 290
59.6
77.4
2 × GeForce GTX 480
55.2
75.5
Radeon HD 6990
55.8
72.4
GeForce GTX 670
49.6
71.6
GeForce GTX 760 OC
50.4
69.1
Radeon R9 380X
50.9
67.8
Radeon R9 280X
52.3
66.7
Radeon HD 5970
48.6
61.8
Radeon HD 7970
45.6
58.0
GeForce GTX 660 OEM
41.1
55.8
GeForce GTX 580 OC
39.9
54.5
Radeon R9 270X OC
41.2
54.2
Radeon HD 7950 Boost
40.2
52.2
GeForce GTX 570 OC
34.2
46.3
GeForce GTX 560 Ti OC
31.3
44.2
Radeon HD 6970 OC (1 GB)
32.5
40.6
Radeon HD 7850 (1 GB)
29.4
40.6
GeForce GTX 480
27.6
39.6
Radeon HD 6970 OC (2 GB)
30.6
38.4
GeForce GTX 460 OC
27.4
38.3
Radeon HD 5850 OC
29.6
37.8
Radeon HD 5870
29.3
36.7
Radeon HD 6870
26.1
33.9
GeForce GTX 470
23.7
32.3
Radeon HD 5850
24.0
30.5
GeForce GTX 460 OEM
19.2
27.2
Radeon HD 5770
16.7
21.9
GeForce GTS 450
14.0
19.7
Quadro 4000
0.0
Hardware Museumwww.hw-museum.cz



Project CARS – 1920×1080 noAA, 16×AF [fps]


◄ 1% low fps | average fps ►
GeForce GTX 690
84.9
132.1
2 × Radeon R9 280X
100.5
126.5
GeForce GTX 780 Ti OC
86.3
122.5
2 × GeForce GTX 580 OC
81.1
104.8
GeForce GTX 780 OC
68.2
102.1
Radeon R9 290X OC
82.1
99.5
GeForce GTX 770 OC
67.3
91.6
GeForce GTX 780 @ 155W
63.7
90.0
Radeon R9 290
70.4
87.0
2 × GeForce GTX 560 Ti OC
58.1
85.2
Radeon HD 6990
66.2
81.9
2 × GeForce GTX 480
59.5
81.4
3 × Radeon HD 5870
59.3
77.1
Radeon R9 380X
58.7
75.6
Radeon R9 280X
60.2
73.9
GeForce GTX 670
50.8
68.9
Radeon HD 5970
55.0
67.1
GeForce GTX 760 OC
48.6
67.0
Radeon HD 7970
52.6
64.5
Radeon R9 270X OC
48.4
60.4
GeForce GTX 580 OC
47.9
59.3
Radeon HD 7950 Boost
46.9
58.3
GeForce GTX 660 OEM
40.3
54.1
GeForce GTX 570 OC
39.9
50.7
Radeon HD 6970 OC (1 GB)
39.0
46.2
Radeon HD 7850 (1 GB)
35.3
45.2
Radeon HD 6970 OC (2 GB)
37.9
44.8
GeForce GTX 560 Ti OC
34.8
44.8
GeForce GTX 480
33.2
43.4
Radeon HD 5850 OC
34.7
41.1
Radeon HD 5870
33.4
39.8
GeForce GTX 460 OC
29.4
38.9
Radeon HD 6870
29.7
36.2
GeForce GTX 470
26.5
35.0
Radeon HD 5850
27.6
32.9
GeForce GTX 460 OEM
20.6
27.2
Radeon HD 5770
19.0
23.6
GeForce GTS 450
14.4
19.7
Quadro 4000
0.0
Hardware Museumwww.hw-museum.cz



Project CARS – 1920×1080 MSAA, 16×AF [fps]


◄ 1% low fps | average fps ►
GeForce GTX 690
77.8
108.2
GeForce GTX 780 Ti OC
71.2
103.1
2 × Radeon R9 280X
77.8
98.6
GeForce GTX 780 OC
61.0
86.2
GeForce GTX 780 @ 155W
54.3
74.7
2 × GeForce GTX 580 OC
52.2
74.6
GeForce GTX 770 OC
52.6
73.6
Radeon R9 290X OC
58.3
71.0
3 × Radeon HD 5870
42.7
63.5
Radeon R9 290
49.2
60.9
2 × GeForce GTX 560 Ti OC
24.9
58.6
Radeon HD 6990
47.1
57.8
2 × GeForce GTX 480
37.5
56.8
GeForce GTX 670
40.2
55.6
GeForce GTX 760 OC
40.2
53.8
Radeon R9 280X
43.4
53.3
Radeon R9 380X
40.3
51.7
Radeon HD 5970
39.7
48.4
Radeon HD 7970
37.2
47.0
GeForce GTX 660 OEM
32.8
42.8
Radeon R9 270X OC
33.0
42.1
Radeon HD 7950 Boost
32.8
41.8
GeForce GTX 580 OC
31.6
41.6
GeForce GTX 570 OC
27.1
35.5
Radeon HD 6970 OC (1 GB)
26.2
32.3
Radeon HD 7850 (1 GB)
23.7
31.1
Radeon HD 6970 OC (2 GB)
25.3
30.8
GeForce GTX 480
22.2
29.7
GeForce GTX 560 Ti OC
14.8
29.6
Radeon HD 5850 OC
23.9
29.4
GeForce GTX 460 OC
22.1
29.1
Radeon HD 5870
23.4
28.7
Radeon HD 6870
20.8
26.5
GeForce GTX 470
18.2
24.2
Radeon HD 5850
19.4
23.5
GeForce GTX 460 OEM
15.8
20.6
Radeon HD 5770
13.4
17.1
GeForce GTS 450
0.0
Quadro 4000
0.0
Hardware Museumwww.hw-museum.cz



Project CARS – 2560×1440 noAA, 16×AF [fps]


◄ 1% low fps | average fps ►
2 × Radeon R9 280X
83.8
105.6
GeForce GTX 690
75.1
105.3
GeForce GTX 780 Ti OC
73.3
100.0
Radeon R9 290X OC
70.0
84.9
2 × GeForce GTX 580 OC
64.1
83.5
GeForce GTX 780 OC
58.3
82.9
GeForce GTX 770 OC
53.5
73.2
Radeon R9 290
59.5
72.1
GeForce GTX 780 @ 155W
51.0
71.3
Radeon HD 6990
54.0
68.1
3 × Radeon HD 5870
48.2
66.9
2 × GeForce GTX 560 Ti OC
47.4
66.2
2 × GeForce GTX 480
50.7
64.6
Radeon R9 280X
50.6
61.4
Radeon R9 380X
47.8
60.4
GeForce GTX 670
43.4
55.4
Radeon HD 5970
46.3
55.0
Radeon HD 7970
43.5
53.3
GeForce GTX 760 OC
39.7
53.0
Radeon R9 270X OC
39.5
48.6
Radeon HD 7950 Boost
38.1
47.7
GeForce GTX 580 OC
36.0
46.1
GeForce GTX 660 OEM
32.7
41.7
GeForce GTX 570 OC
32.1
39.1
Radeon HD 6970 OC (1 GB)
32.6
38.3
Radeon HD 6970 OC (2 GB)
31.4
37.0
Radeon HD 7850 (1 GB)
28.3
36.0
GeForce GTX 560 Ti OC
27.2
34.4
Radeon HD 5850 OC
27.7
33.5
GeForce GTX 480
25.3
33.1
Radeon HD 5870
27.5
32.7
GeForce GTX 460 OC
23.3
29.6
Radeon HD 6870
23.5
28.8
Radeon HD 5850
22.8
27.1
GeForce GTX 470
21.6
27.1
GeForce GTX 460 OEM
16.8
20.9
Radeon HD 5770
15.3
18.6
GeForce GTS 450
12.0
15.0
Quadro 4000
0.0
Hardware Museumwww.hw-museum.cz



Project CARS – 2560×1440 MSAA, 16×AF [fps]


◄ 1% low fps | average fps ►
GeForce GTX 690
65.9
82.4
GeForce GTX 780 Ti OC
64.7
80.5
2 × Radeon R9 280X
61.1
77.9
GeForce GTX 780 OC
48.9
67.8
GeForce GTX 780 @ 155W
43.0
57.3
GeForce GTX 770 OC
41.6
55.9
2 × GeForce GTX 580 OC
41.2
55.7
Radeon R9 290X OC
45.6
55.2
3 × Radeon HD 5870
21.9
47.0
Radeon R9 290
38.8
47.0
Radeon HD 6990
32.7
44.5
Radeon R9 280X
34.5
42.3
GeForce GTX 670
33.7
42.3
2 × GeForce GTX 480
33.2
42.2
GeForce GTX 760 OC
33.6
41.2
Radeon R9 380X
31.4
39.5
Radeon HD 7970
29.9
37.1
2 × GeForce GTX 560 Ti OC
11.2
36.9
Radeon HD 5970
23.8
36.4
Radeon HD 7950 Boost
26.4
32.7
Radeon R9 270X OC
26.2
32.4
GeForce GTX 660 OEM
25.3
31.8
GeForce GTX 580 OC
24.1
30.8
Radeon HD 6970 OC (1 GB)
11.6
24.0
Radeon HD 6970 OC (2 GB)
20.1
23.9
Radeon HD 5850 OC
18.4
22.3
Radeon HD 5870
18.1
21.8
GeForce GTX 480
16.6
21.8
Radeon HD 6870
16.2
20.1
Radeon HD 5850
15.0
17.9
GeForce GTX 470
12.7
17.1
GeForce GTX 570 OC
8.3
16.7
GeForce GTX 460 OEM
12.3
15.3
Radeon HD 5770
0.0
Radeon HD 7850 (1 GB)
0.0
GeForce GTS 450
0.0
Quadro 4000
0.0
GeForce GTX 460 OC
0.0
GeForce GTX 560 Ti OC
0.0
Hardware Museumwww.hw-museum.cz
